Interfaces
3.4 Digital inputs/digital outputs
D4x5
38 Manual, 03/2007 Edition
3.4 Digital inputs/digital outputs
3.4.1 Digital inputs/digital outputs X122, X132
Interface features
Table 3-7 Interfaces X122 and X132
Features Type
Connector type Micro Combicon
Connection possibility Up to 0.25 mm
2
Current carrying capacity 4 A, maximum

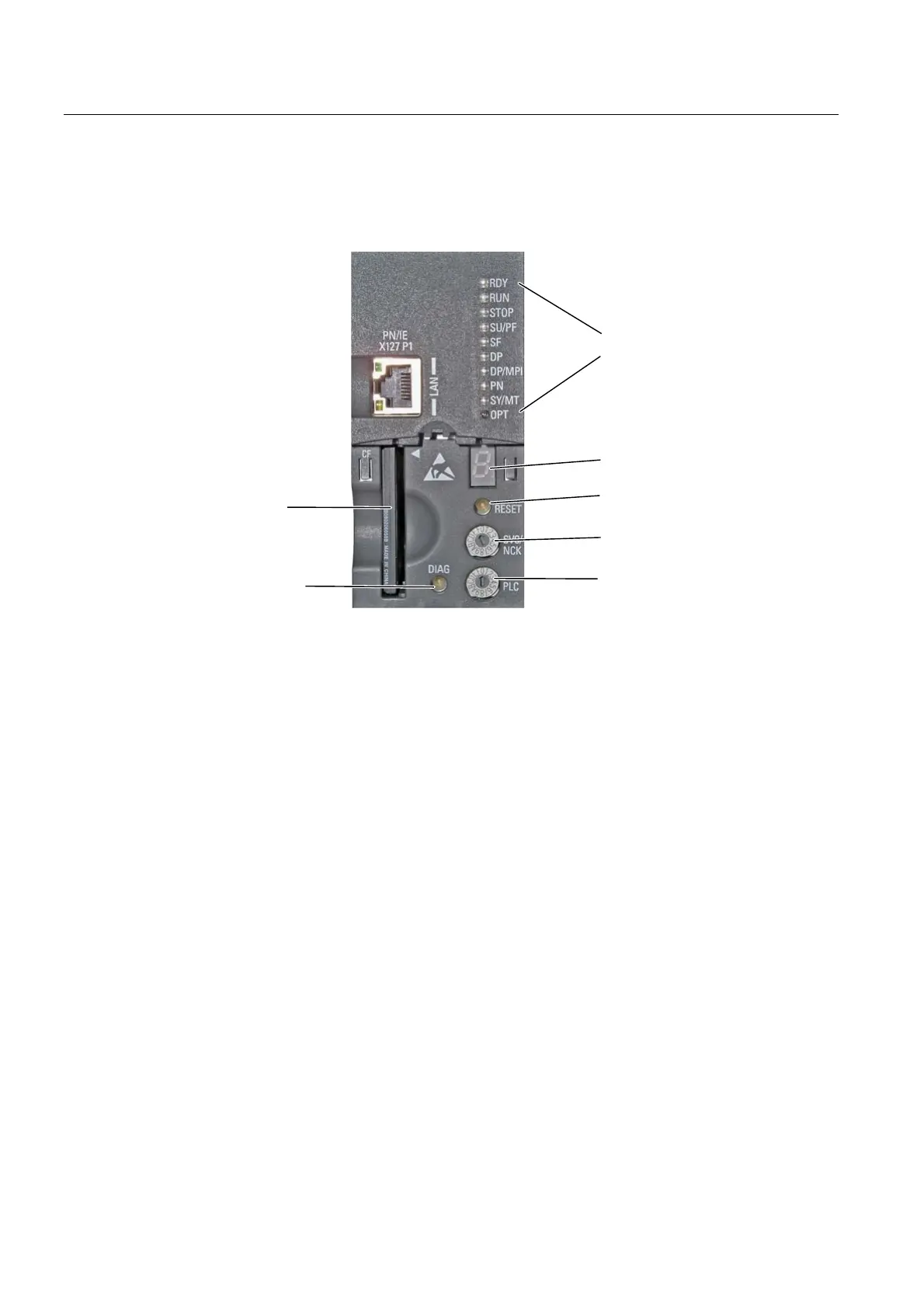

Position of connectors
'LJLWDOLQSXWV
3LQ
'LJLWDOLQSXWVGLJLWDORXWSXWV
3LQDQG
;;
Figure 3-3 Digital inputs and digital inputs/digital outputs (interfaces X122 and X132)
Access to inputs/outputs
Note
The SIMOTION Runtime module accesses the digital inputs/outputs by means of
PROFIBUS Integrated rather than directly. For this reason, the inputs/outputs are updated in
the PROFIBUS bus cycle clock of SINAMICS Integrated.
