3.3 Ethernet interfaces X120 and X130
D4x5
Manual, 03/2007 Edition
37
Interface features
Table 3-5 X120 and X130
Features Type
Connector type RJ45 socket connector
Cable type Industrial Ethernet cable
Maximum cable length 100 m
Other The X120 and X130 interfaces are full-duplex 10/100-Mbit Ethernet ports.
Both ports are wired as Ethernet terminals.
Pin assignment
Table 3-6 Ethernet interfaces (X120 and X130)
Pin Signal name Signal type Meaning
1 TXP Output Ethernet transmit differential signal
2 TXN Output Ethernet transmit differential signal
3 RXP Input Ethernet receive differential signal
4 NC
5 NC
6 RXN Input Ethernet receive differential signal
7 NC
8 NC
Note

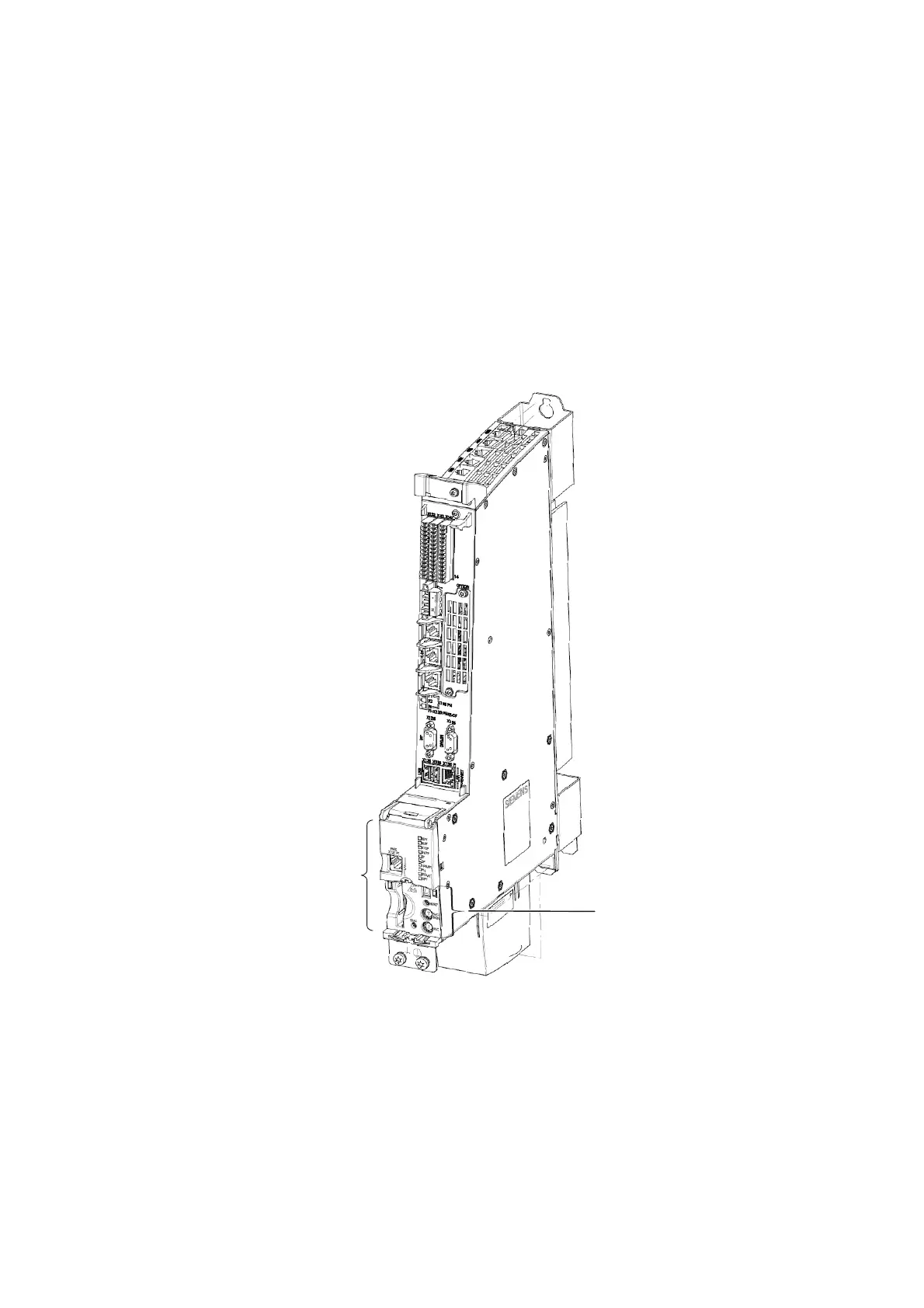

The MAC addresses are imprinted on an adhesive label that is located behind the protective
cover and can be seen from the front.
If you wish to connect a programming device via Ethernet, you must use a transposed cable.
If there is a hub or switch in between, you can use a standard Ethernet cable.
