Spare parts/accessories
6.9 DMC20 DRIVE-CLiQ hub

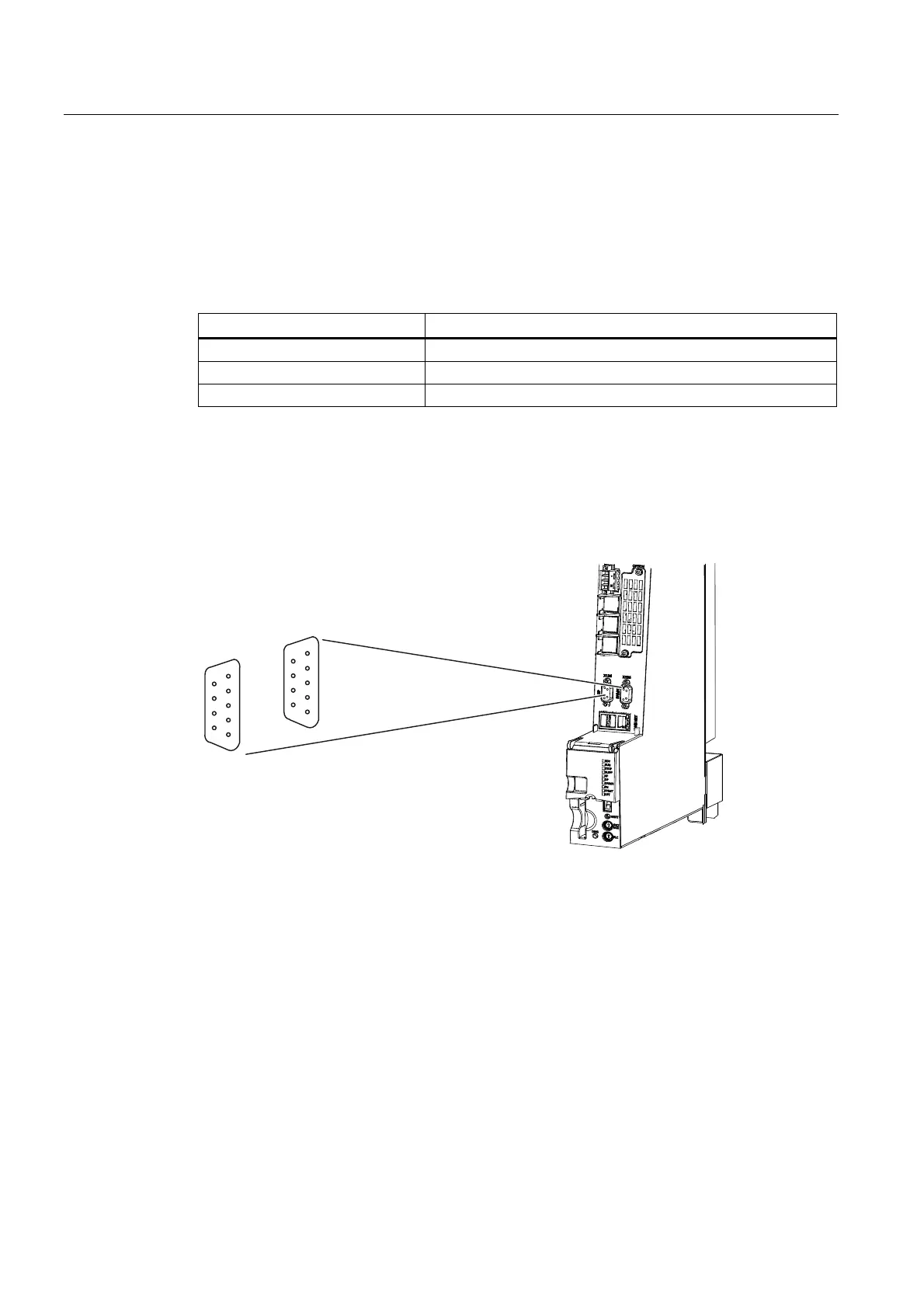

D4x5
66 Manual, 03/2007 Edition
6.9 DMC20 DRIVE-CLiQ hub
Features
The DRIVE-CLiQ hub module 20 (DMC20) is used for the star-shaped distribution of a
DRIVE-CLiQ line. With the DMC20, an axis grouping can be expanded with four DRIVE-
CLiQ sockets for additional subgroups.
The module is especially suitable for applications which require DRIVE-CLiQ link nodes to
be removed in groups, without interrupting the DRIVE-CLiQ link line and therefore the data
exchange.
Caution
The 50 mm clearances above and below the component must be observed.
Additional references
You will find detailed information about the DMC20 in the
SINAMICS S120 Control Units and
Additional Components
Manual.
6.10 CX32 module
Features of the CX32 (Control Extension)
The CX32 module enables you to expand the performance of a SIMOTION D435 and D445
axis grouping. The CX32 is connected by means of DRIVE-CLiQ.
The CX32 has the following interfaces:
• 4 DRIVE-CLiQ (X100 – X103)
• 4 digital inputs and 4 digital inputs/digital outputs (X122)
• Power supply (X124)
Caution
The cooling clearances of 80 mm above and below the components must be observed.
Additional references
You will find detailed information about the CX32 in the
Supplemental SINAMICS System
Components for SIMOTION
Manual.
