Parameter assignment / addressing

5.2 Creating a project and configuring the communication

SIMOTION D4x5-2

120 Commissioning and Hardware Installation Manual, 02/2012

5.2.4 Representation of SIMOTION D4x5-2 in HW Config

Once you have created a project and inserted a SIMOTION D4x5-2 as module, HW Config

opens automatically (if parameterized).

In HW Config the SIMOTION D4x5-2 units are shown with the SINAMICS Integrated and the

interfaces.

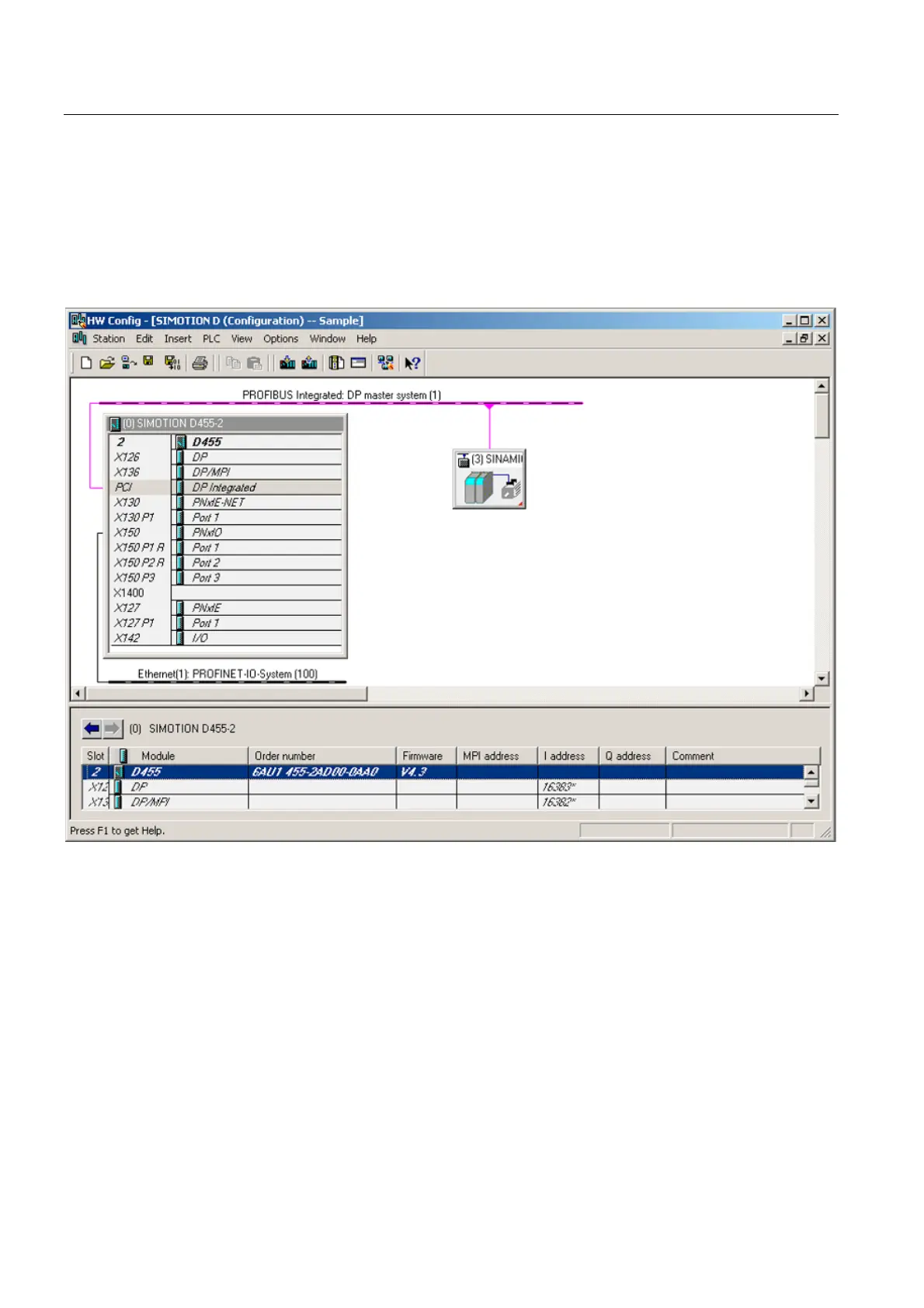

Figure 5-4 Representation of a D4x5-2 in HW Config
