Installing
2.3 Installing supplementary system components
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 02/2012
33
2.3 Installing supplementary system components
2.3.1 Installing the TB30
Requirement
Note
The TB30 terminal board may only be inserted and removed when the D4x5-2 control unit
and the terminal board are de-energized.
Procedure
The TB30 is installed in the option slot of the control unit.
,QVHUWDQGIDVWHQ7%RSWLRQ
ERDUG
/RRVHQDQGUHPRYHFRYHURIWKH
RSWLRQVORW
)L[LQJVFUHZV
01P
7RU[7



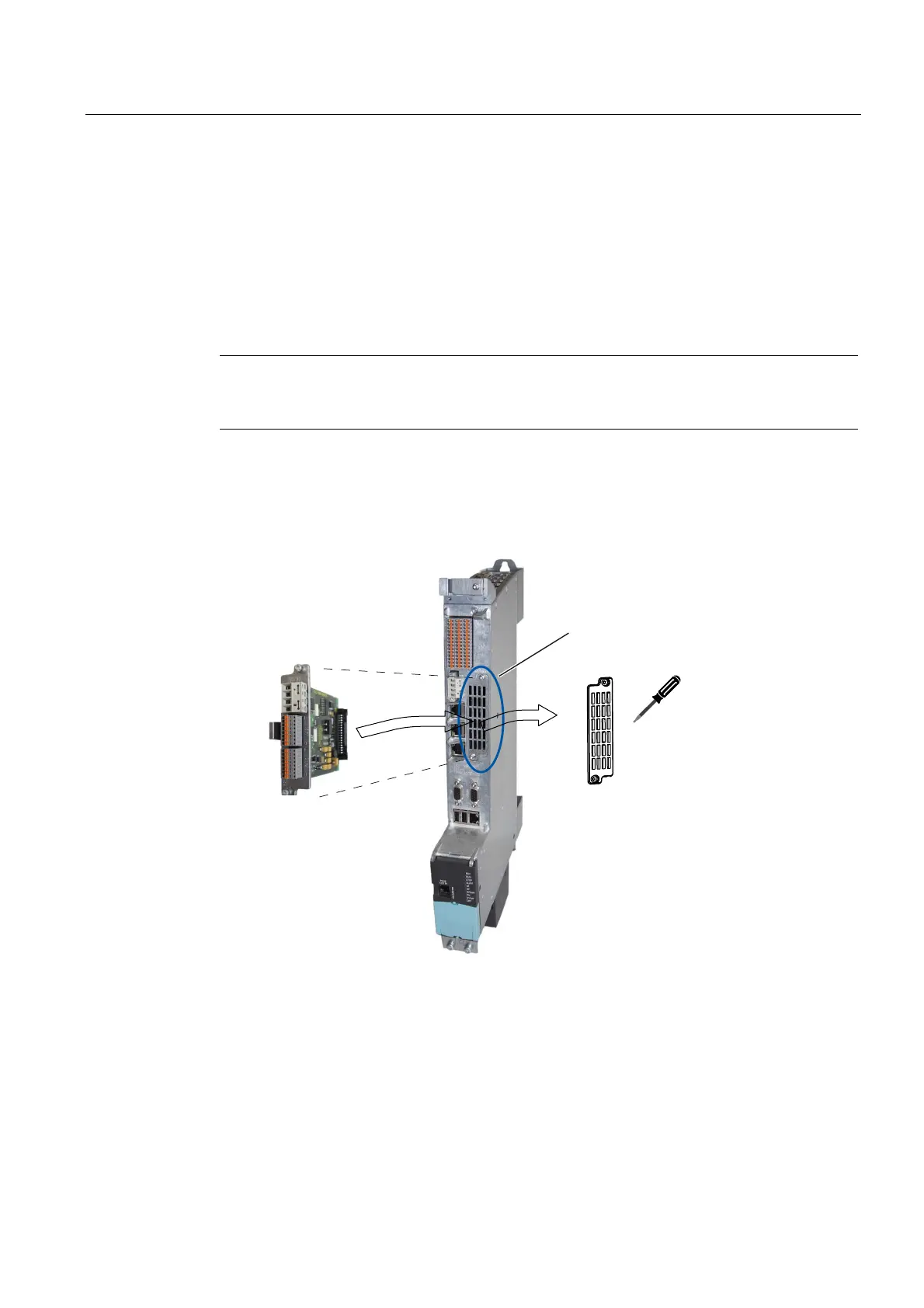

Figure 2-6 Installation of the TB30 terminal board using the D445-2 DP/PN as an example
