2.2.3 Mounting the SIMOTION D425-2 and D435-2 without spacers
The control units are supplied with pre-assembled spacers. For mounting without spacers,
proceed as follows:
1. Remove the upper and lower spacers (screws: M3, Torx T10)
2. There is a metal clip under the upper spacer; when shipped, the clip is pushed in and
secured with three screws (M3, Torx T10) fixed. Loosen the screws and push the clip up
until the upper hole extends beyond the housing.
3. Tighten up the three screws on the clip again (0.8 Nm tightening torque).
4. Mount the top and bottom of the control unit directly on the cabinet wall with two M6
screws (6 Nm tightening torque).
0RXQWLQJZLWK
0VFUHZV

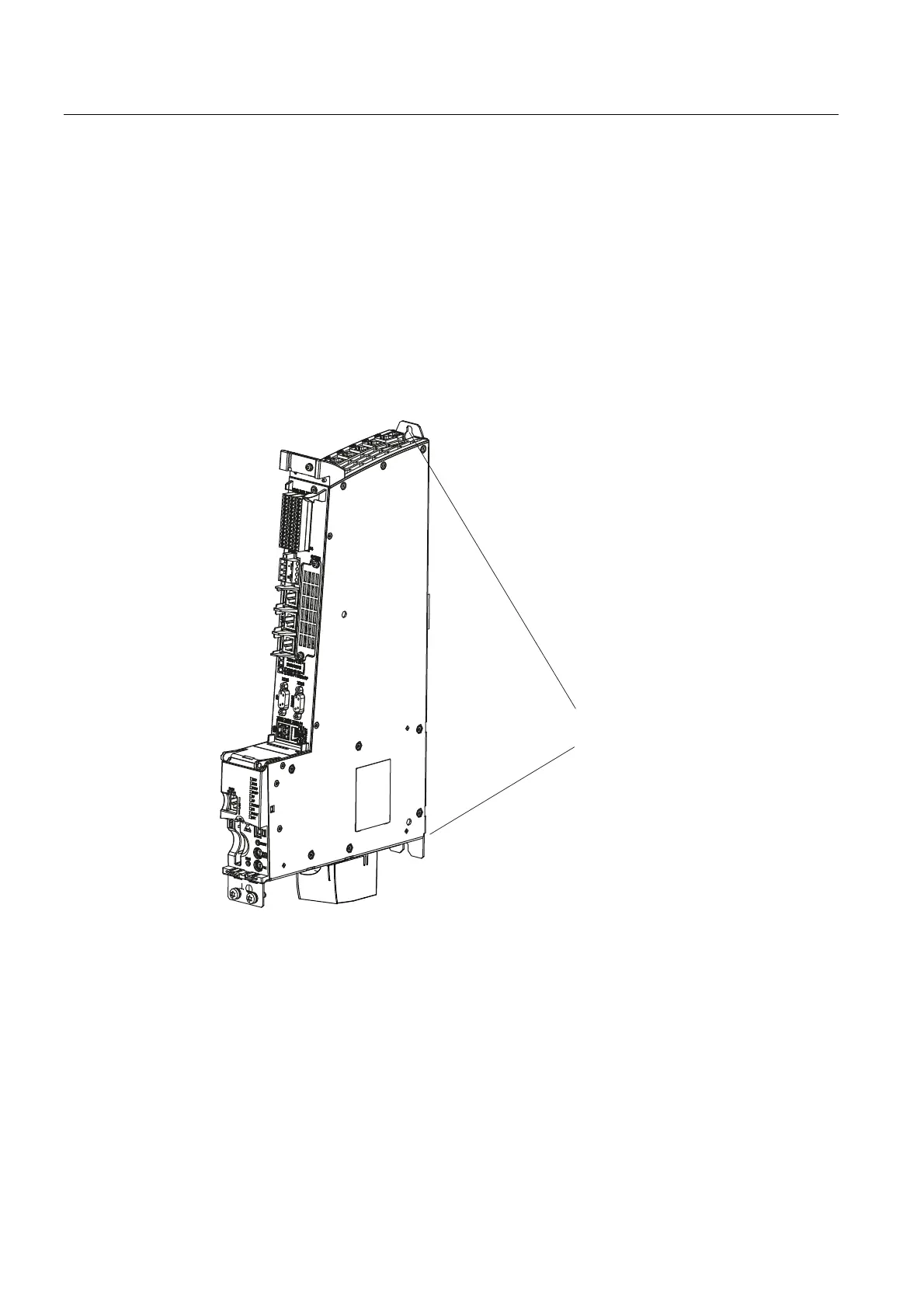

Figure 2-3 Mounting the control unit without spacers
