Connecting
3.10 Routing
SIMOTION D4x5-2
80 Commissioning and Hardware Installation Manual, 02/2012
Engineering system / HMI to Ethernet

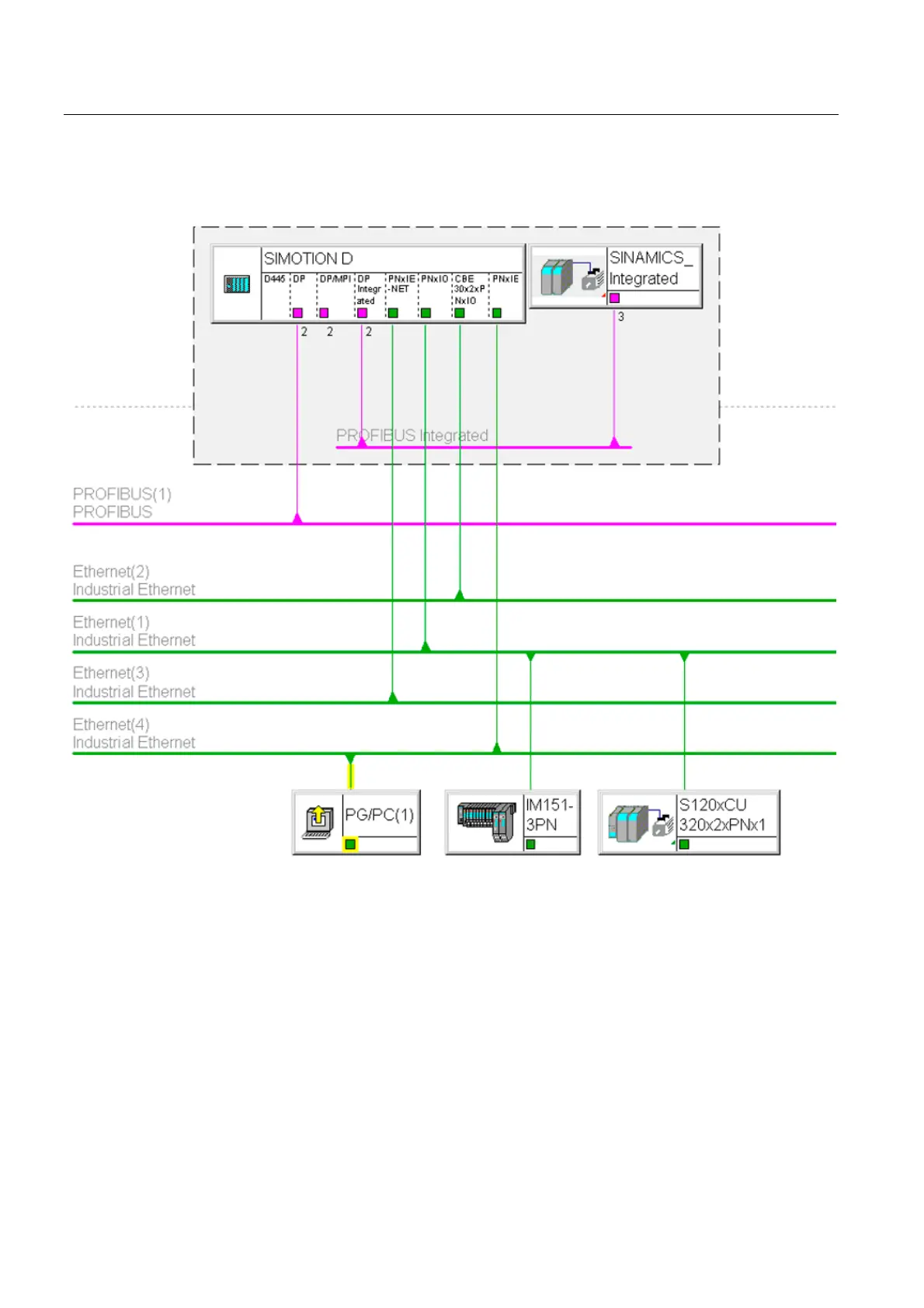

Figure 3-19 Example of PG/PC to Ethernet interface (PNxIE, X127)
● S7 routing to the other (master) PROFIBUS interfaces (only if configured)
● S7 routing to the PROFIBUS Integrated
● S7 routing to the onboard PROFINET IO interface (X150, P1-P3)
● S7 routing to the second PROFINET IO interface with CBE30-2 (X1400, P1-P4)
● S7 routing between the Ethernet interfaces
