3 Setting up and commissioning the application
3.5 Loading the software
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
13
Copyright  Siemens AG 2018 All rights reserved
No.
Action
Remarks

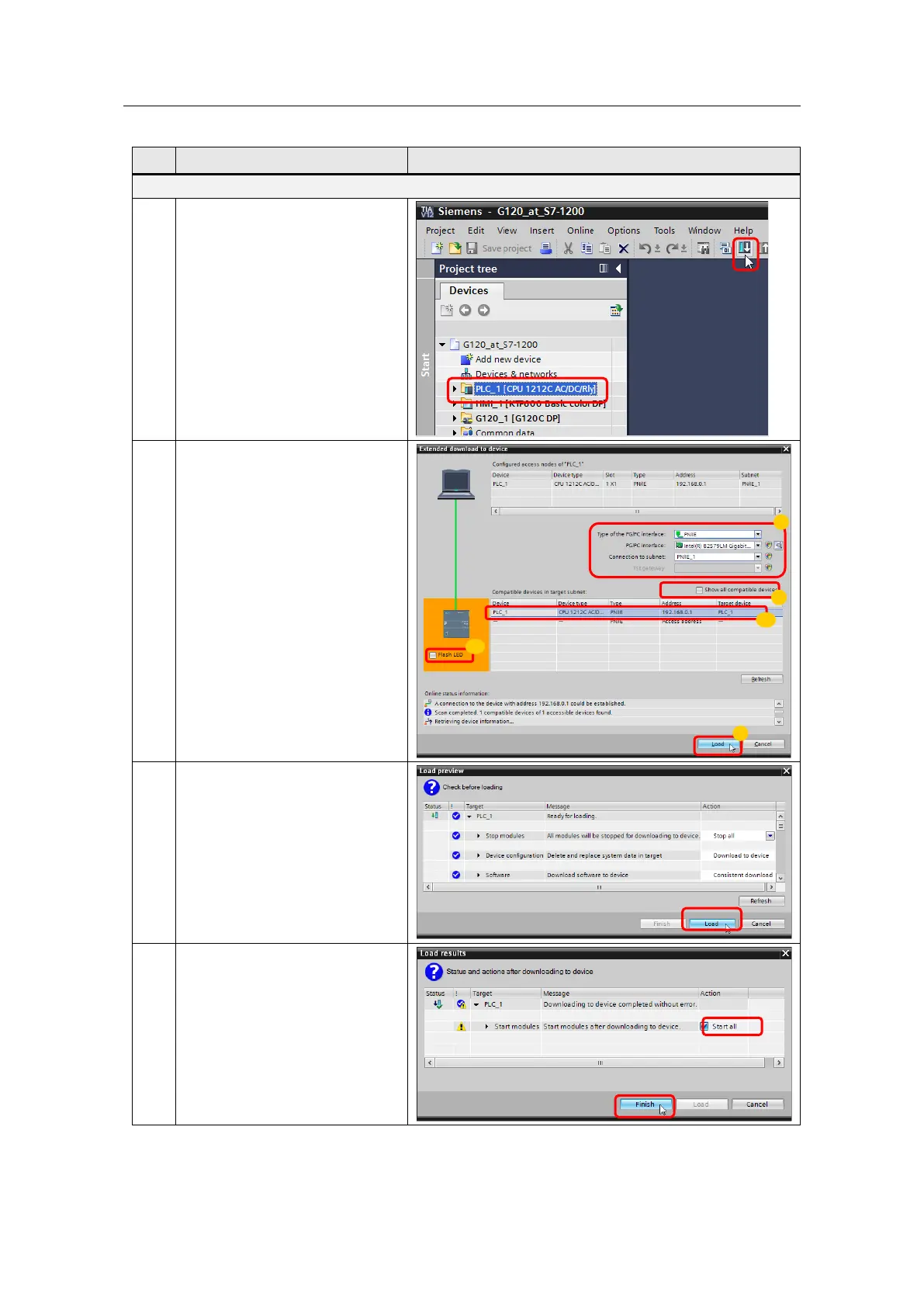

Loading the STEP 7 program into the SIMATIC controller
5.
Load the program into the
SIMATIC controller.
6.
If the “Extended download”
window appears, proceed as
follows:
1. Select the used PG/PC
interface to connect with the
Ethernet subnet.
2. Checkmark “Show all
compatible devices” when
receiving a respective online
status information in the lower
part of the window
3. Select the SIMATIC controller
to be used in the target
subnet. If necessary, identify
it by “Flash LED”.
4. Acknowledge with the “Load”
button.
7.
Start the download process.
8.
Exit the download with the “Start
all” option.
1
2
3a
3b
4

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
