Siemens SINAMICS G120P Manual

5 Functional Mechanisms of this Application
5.1 Functionality of process data exchange
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
32
 Siemens AG 2018 All rights reserved
5.1.4 Control word (STW1) and status word (ZSW1)
Control and status word are predefined. They are exchanged in all message frame
types in the first respective process data word (PDZ01).

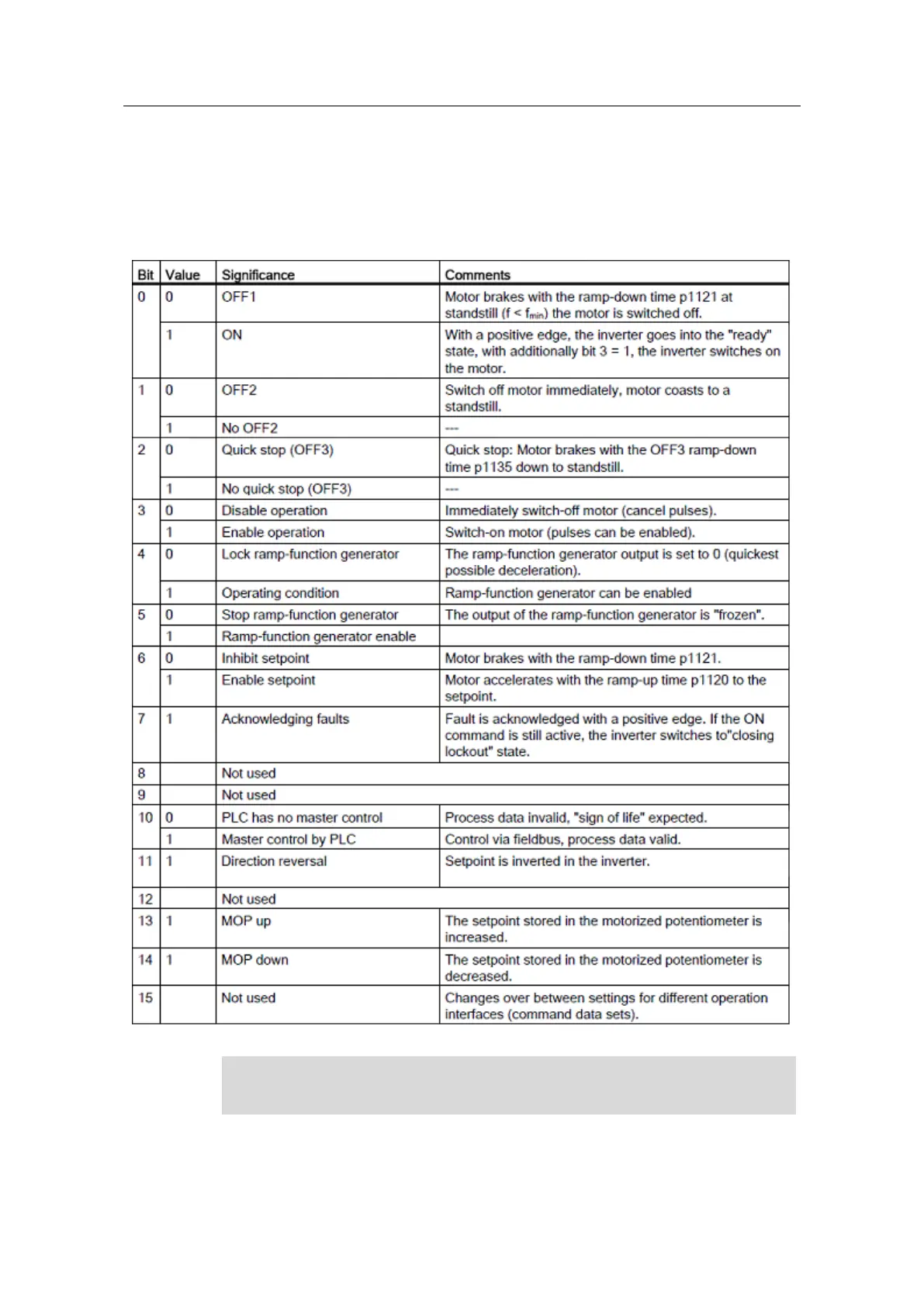

Figure 5-3: STW1
Note
A control word for which all bits are 0 is rejected as invalid by the SINAMICS
converter. Therefore, at least bit 10 must always be set.

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
