Siemens SINAMICS G120P Manual

5 Functional Mechanisms of this Application
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
29
Copyright  Siemens AG 2018 All rights reserved
5 Functional Mechanisms of this Application
Program overview

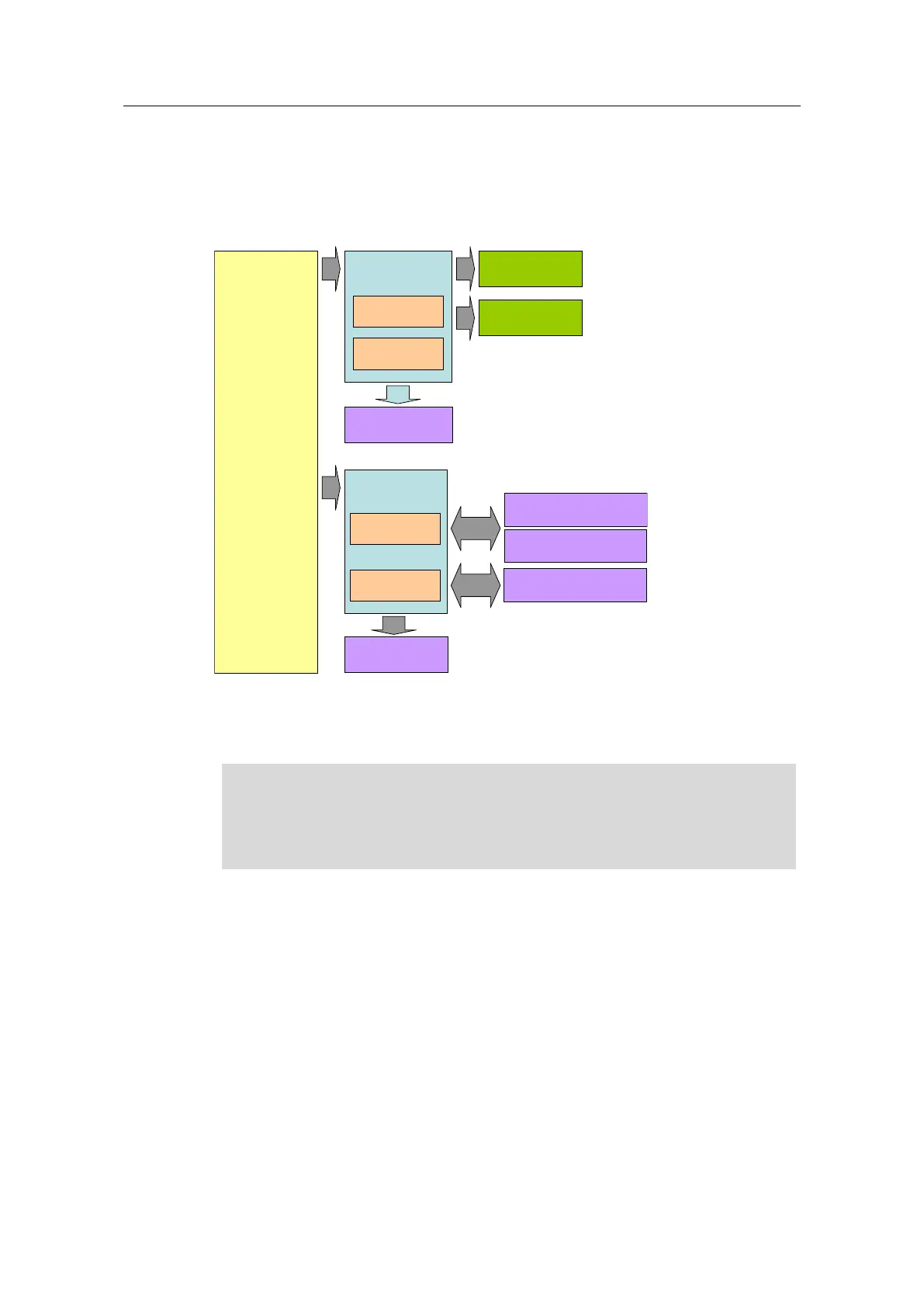

Figure 5-1: Program overview
OB1
“Main“
FB11
“Process_Data “
FB20
“Parameters“
DB11
“idb_Process_Data “
DB20
“idb_Parameters“
DB100
“write_drive_parameters“
FC11
“Denormalization“
FC12
“Normalization“
Instruction
“DPRD_DAT“
Instruction
“DPWR_DAT“
…
…
…
Instruction
“WRREC“
Instruction
“RDREC“
…
…
…
DB101
“read_drive_parameters“
DB103
“answer_from_drive“
…
For the cyclic process data exchange and the acyclic parameter access, separate
function blocks are used.
Note
In OB1, the FC10 “Simulation” is called up. Here, FC10 simulates a user
program, by creating a control word and setpoint using the digital inputs.
Since it is only used here to make the example program runnable, it is not further
discussed.

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
