Siemens SINAMICS G120P Manual

6 Configuration and Settings
6.1 Creating the project configuration
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
53
 Siemens AG 2018 All rights reserved
No.
Action
Remarks

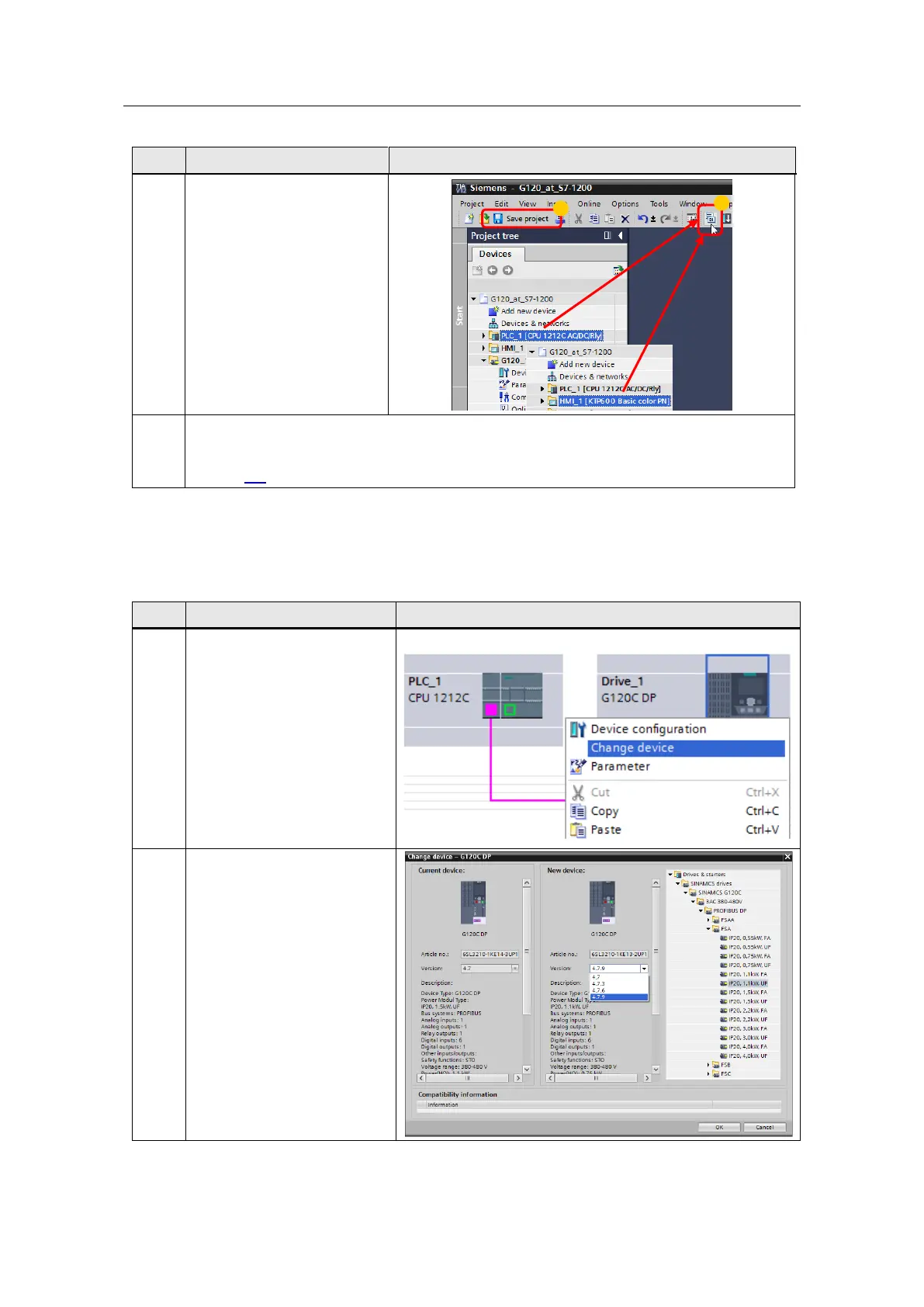

24.
The device and network
configuration is now
completed.
1. Successively compile the
configurations of
SIMATIC CPU and HMI
device for control
purposes. The
compilation results can
be seen in the inspection
window.
2. Save the project.
25.
Now you create the STEP 7 program (programming the OBs, FCs, FBs, DBs) and also
configure the HMI control panel (creating pictures, assigning HMI tags etc.). Then load the
entire software into SIMATIC controller, SIMATIC drive and HMI panel, according to
chapter 3.5.
6.1.2 Change device of SINAMICS G120
It is possible to change the SINAMICS after the configuration.
Table 6-2: change device of SINAMICS G120
No.
Action
Remarks
1.
Select the SINAMICS G120
and open the mask for change.
2.
It is possible to change the
size and the firmware-version
of a SINAMICS G120C.
The firmware-version is
changeable by all SINAMICS
G120.
2
1

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
