Siemens SINAMICS G120P Manual

5 Functional Mechanisms of this Application
5.2 Parameter access functionality
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
41
 Siemens AG 2018 All rights reserved

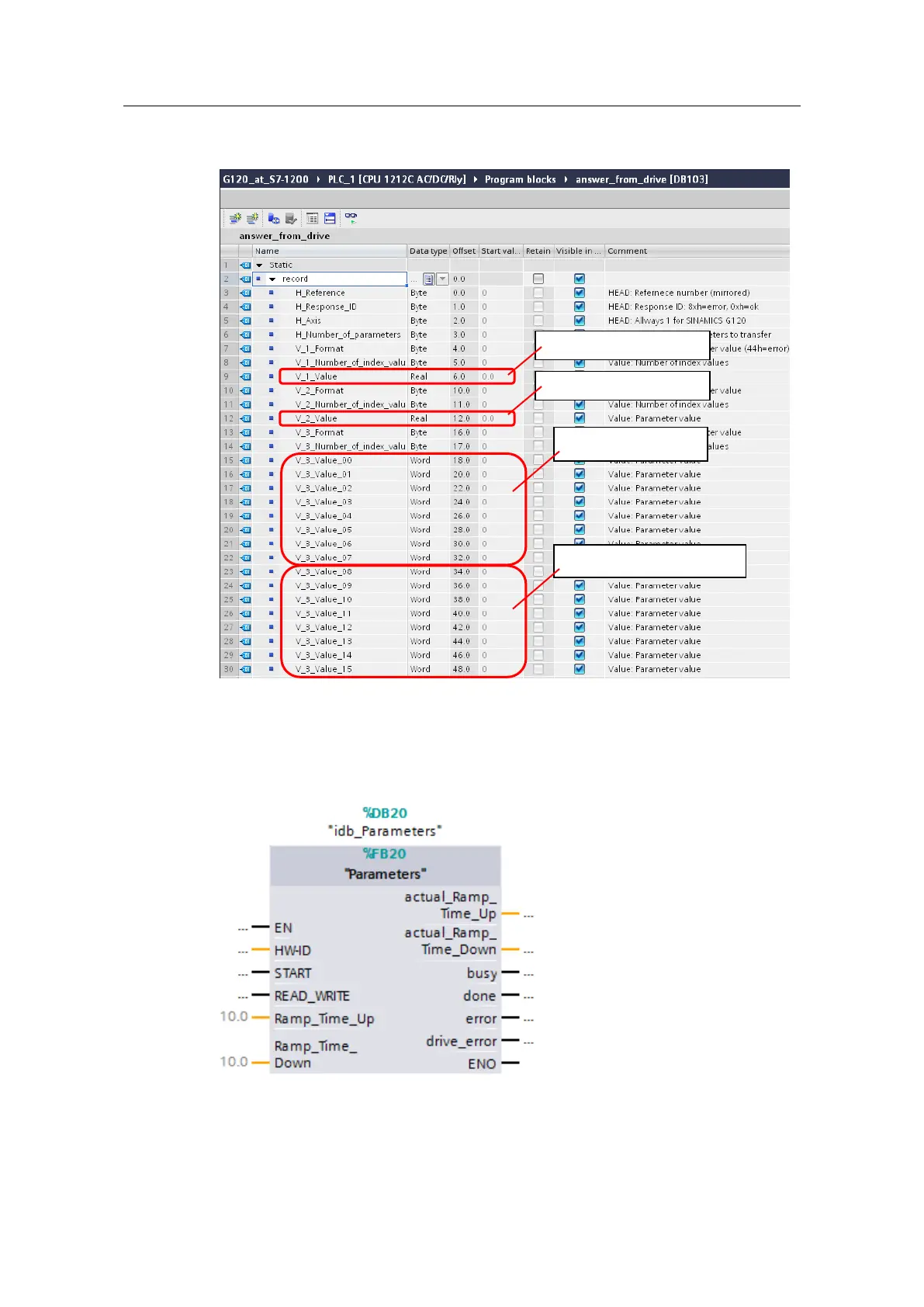

Figure 5-10 DB103 “answer_from_drive”
5.2.3 FB 20 “Parameters”
In the example, the parameter access occurs in FB “Parameters”. It is called
cyclically by OB Main.
Figure 5-11 FB “Parameters”
Actual alarms
Acknowledged alarms
Ramp-up time [s]
Ramp-down time [s]

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
