Siemens SINAMICS G120P Manual

5 Functional Mechanisms of this Application
5.1 Functionality of process data exchange
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
34
 Siemens AG 2018 All rights reserved
5.1.5 FB 11 “Process_Data”
This FB shows the access to the process data with the use of the “DPRD_DAT” /
“DPWR_DAT” instructions. It is called up cyclically in OB1.

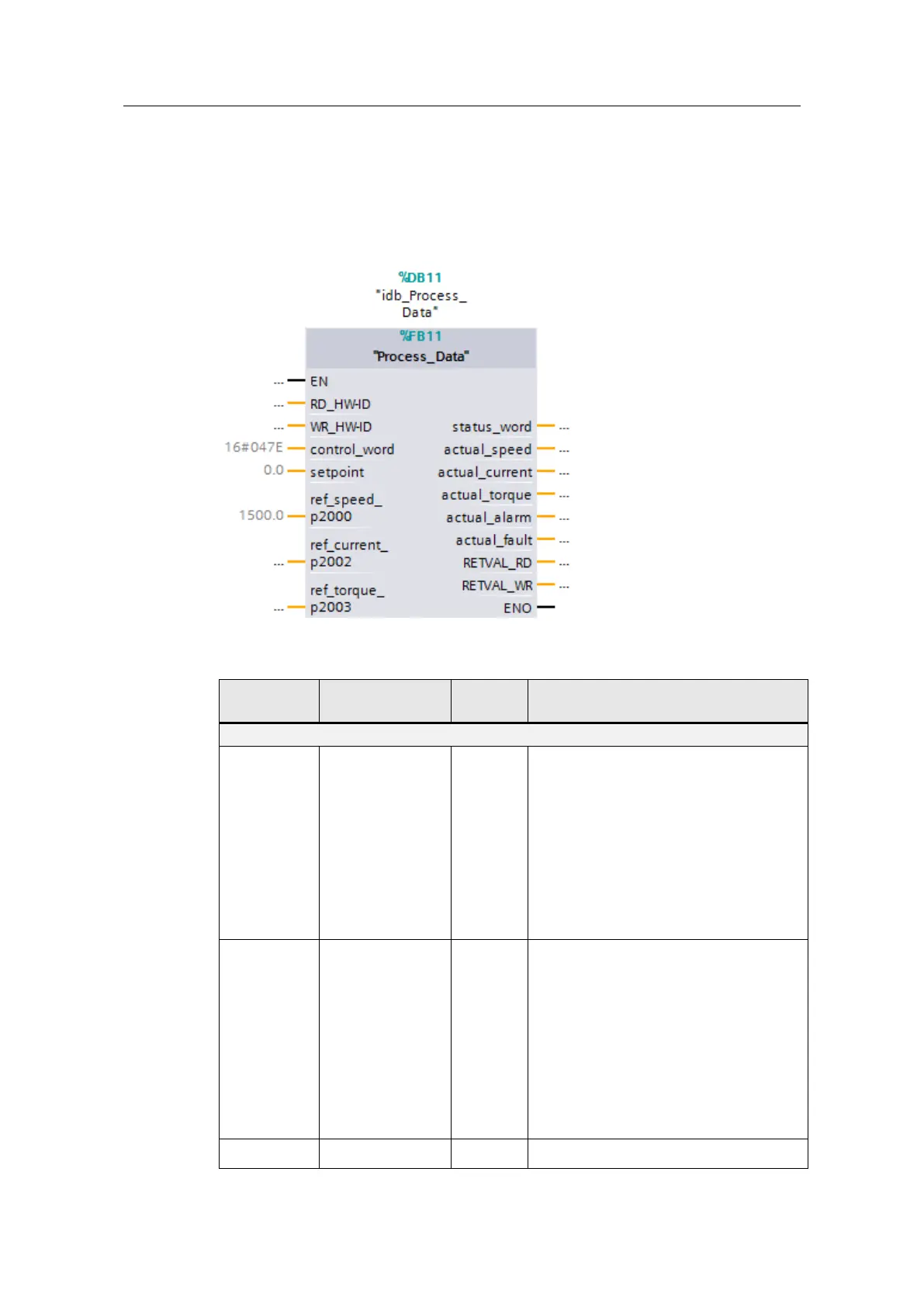

Figure 5-5: FB “Process_Data”
Table 5-1: Interface of the “Process_Data” FB
Parameter
Data type
Start
value
Description
Input parameters
RD_HW-ID
HW_SUBMODULE
-
Decisive hardware identifier for reading
data from a DP standard slave /PROFINET
IO device.
When selecting the frame type in the
properties of the SINAMICS drive in the
TIA Portal, STEP 7 creates a system
constant which corresponds to this
identifier. Enter this system constant here.
It is symbolically displayed to you in the
dropdown list when entering the
parameters.
WR_HW-ID
HW_SUBMODULE
-
Decisive hardware identifier for writing data
to a DP standard slave /PROFINET IO
device.
When selecting the frame type in the
properties of the SINAMICS drive in the
TIA Portal, STEP 7 creates a system
constant which corresponds to this
identifier. Enter this system constant here.
It is symbolically displayed to you in the
dropdown list when entering the
parameters.
control_word
Word
16#047E
Control word of SINAMICS G120

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
