6.9 Starting motor test run (JOG/HAND)
SINAMICS V20 Converter
160 Operating Instructions, 10/2019, A5E34559884-012
6.9 Starting motor test run (JOG/HAND)
You use this Web page to start the motor test run in JOG or HAND mode.
Operating sequence
1.
Open the JOG Web page by selecting the JOG icon from either
the home page or the
navigation sidebar.
2.

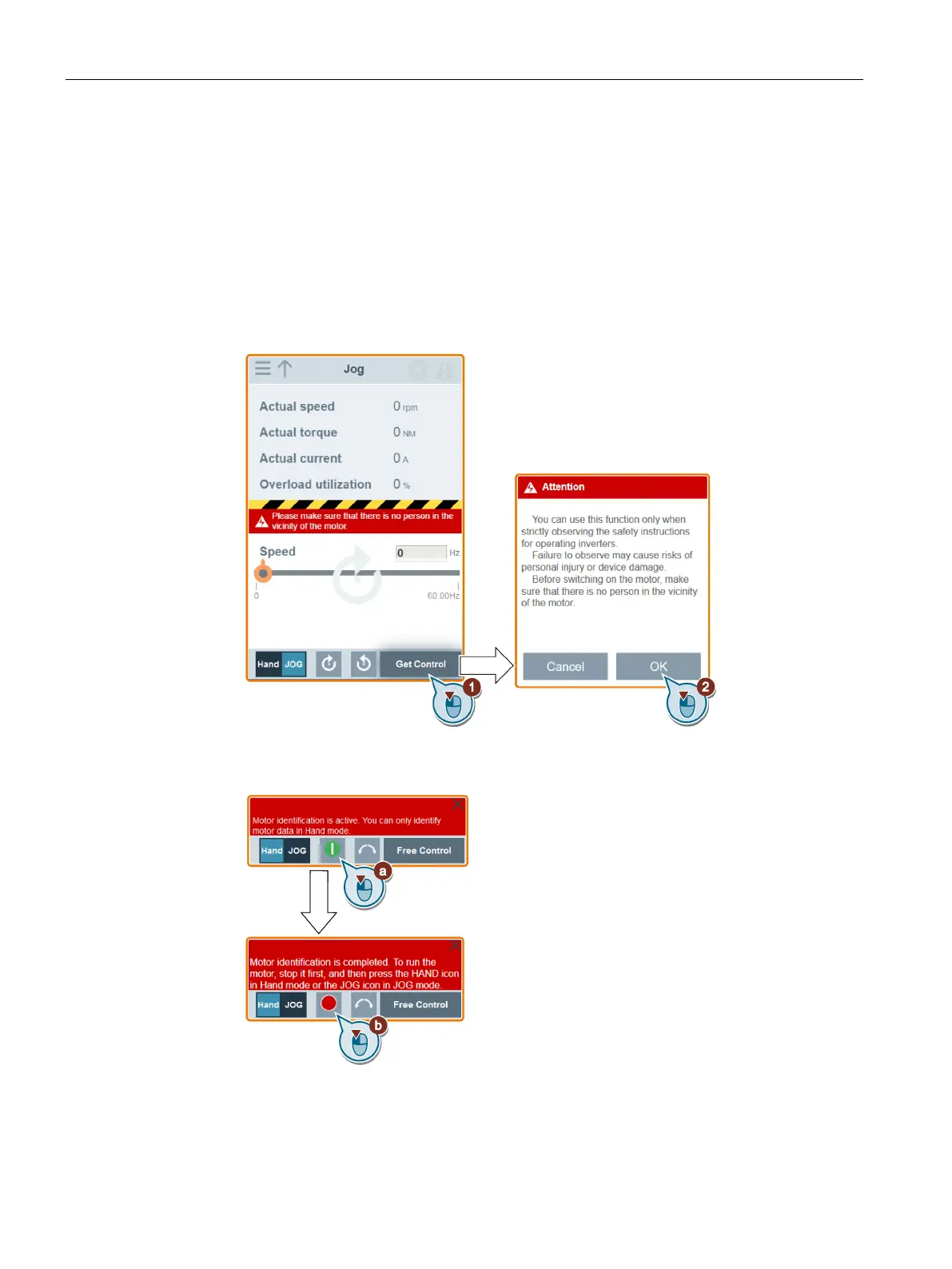

Proceed as follows to get control of the motor:
3.
Identify the motor data. The step
shown below appears only if you have set P1900 = 2
in either the
quick commissioning page (Page 150) or the parameters page (Page 155
).
4.
Run the motor in JOG or HAND mode (default mode: JOG).
Note that if desired, you can also test
the motor rotation direction with the correspond-
ing button ("①"). The page shows the currently selected rotation direction ("②").

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
