2.3 Connecting the individual components
2-35
SINUMERIK 802S
6FC5 597–2AA00–0BP2 (01.02)

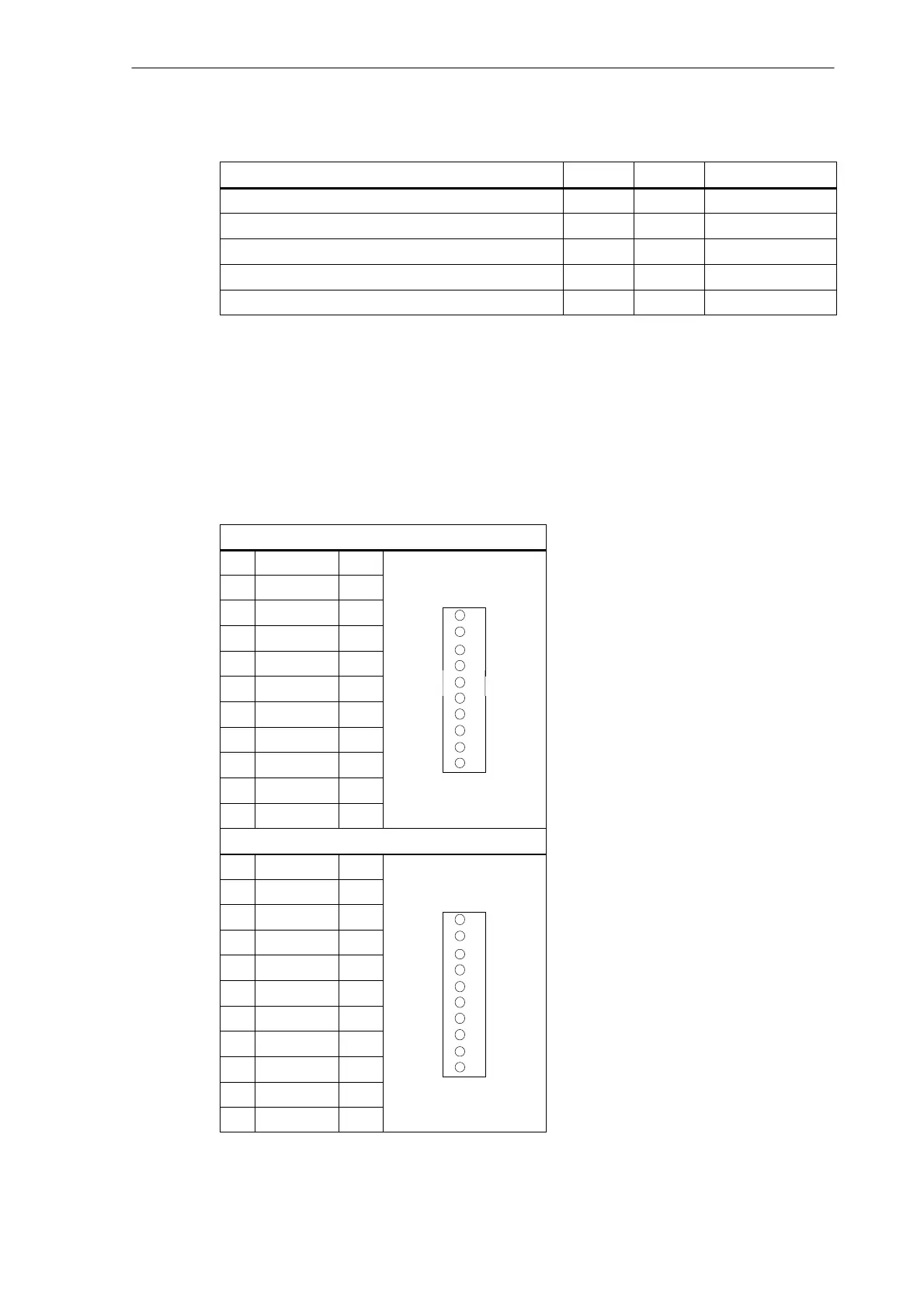

Table 2-18 Electrical parameters of the digital inputs
Parameter
Value Unit Note
“1” signal, voltage range 15...30 V
“1” signal, current consumption 2...15 mA
“0” signal, voltage range -3...5 V or input open
Signal delay 0 ³ 1 0.5...3 ms
Signal delay 1 ³ 0 0.5...3 ms
Connector pin assignment
Interface for digital outputs
Connector designation: X2005, X2006
OUT
Connector type: 10–pin plug connector
Table 2-19 Connector pin assignment
X2005
Pin Name Type
1 1P24 V
2 DO0 O
3 DO1 O
4 DO2 O
5 DO3 O
6 DO4 O
7 DO5 O
8 DO6 O
9 DO7 O
10 1M24 V
X2006
Pin Name Type
1 2P24 V
2 DO8 O
3 DO9 O
4 DO10 O
5 DO11 O
6 DO12 O
7 DO13 O
8 DO14 O
9 DO15 O
10 2M24 V
