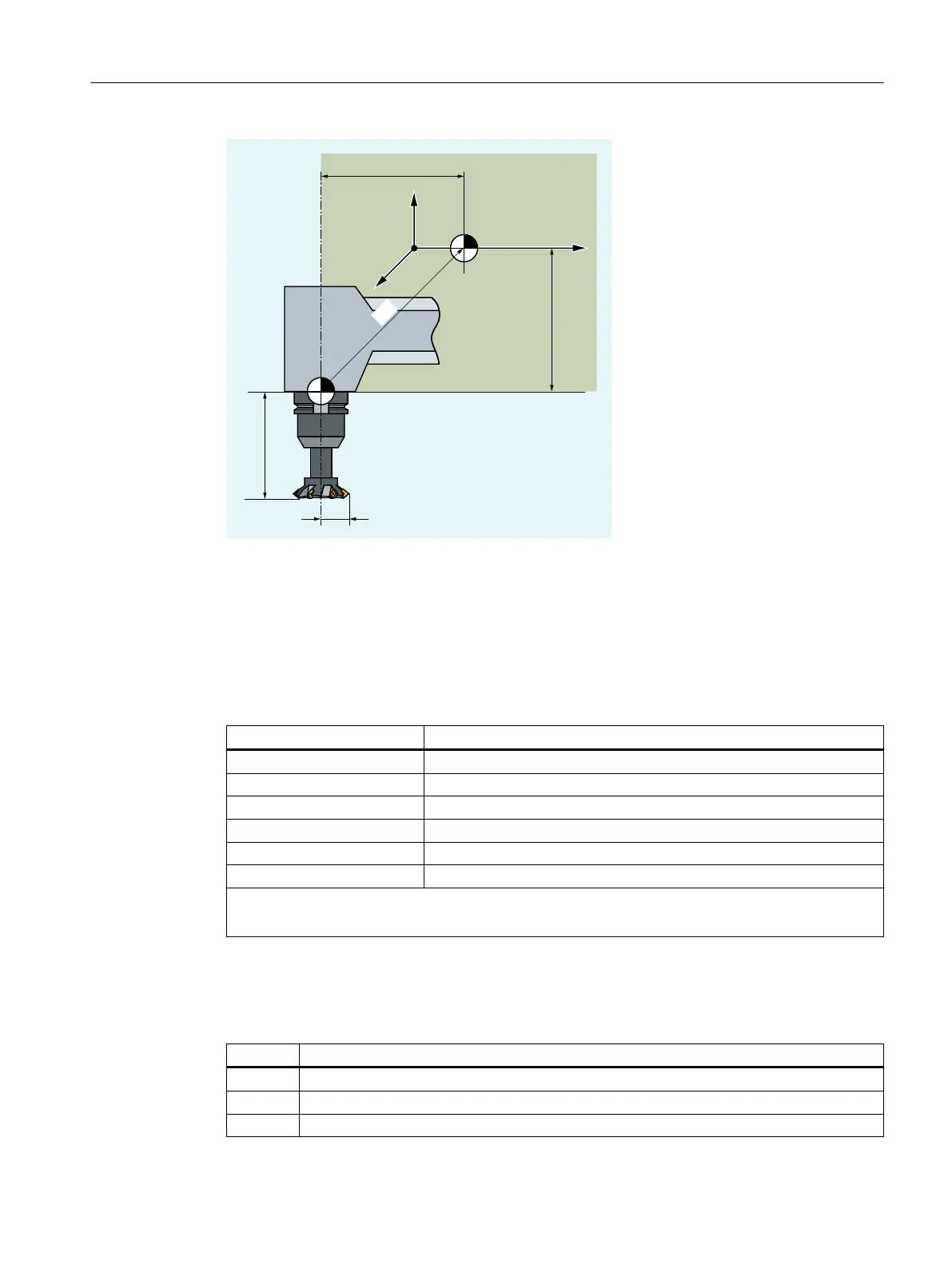

T Tool carrier reference point
T' Tool carrier reference point
L1 Geometry - length 1
R Tool radius
L1' Base dimension - length 1
L2' Base dimension - length 2
L3' Base dimension - length 3
Tool parameters Meaning
$TC_DP1 Tool type
$TC_DP3 Geometry - length 1
$TC_DP6 Geometry - radius
$TC_DP21 Base dimension - length 1
$TC_DP22 Base dimension - length 2
$TC_DP23 Base dimension - length 3
● Wear values corresponding to the requirements.
● Other values should be set to 0.
2.5.5.3 Drills
The following tool types are available in the "Drills" group:
No. Tool type
200 Twist drill
205 Drill
210 Boring bar
Fundamentals
2.5 Tool offsets
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 73
