Siemens SINUMERIK 804D sl Programming Manual

Y
X
DISPR
REPOSL
Block start point
Interruption point

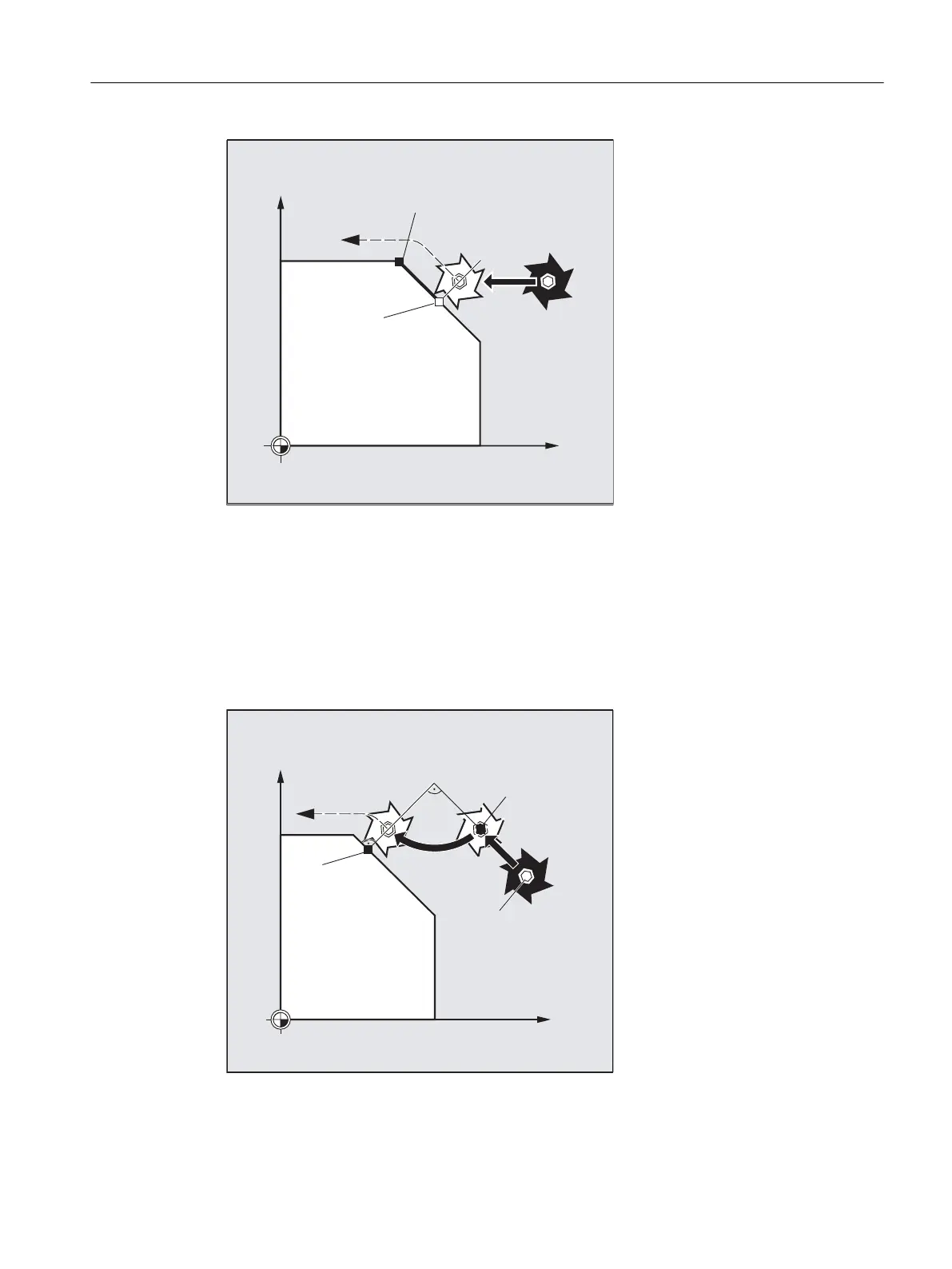

Repositioning to the contour along a quadrant, REPOSQ, REPOSQA
The tool approaches the repositioning point along a quadrant with a radius of DISR=…. The
control automatically calculates the necessary intermediate point between the start and
repositioning point.
Example
REPOSQ RMIBL DISR=10 F400
Block start point
Start point
Intermediate
point
Y
X
Q
S
O
P
E
R
DISR
Work preparation
3.14 Path traversing behavior
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 855
