12.95
C-136
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

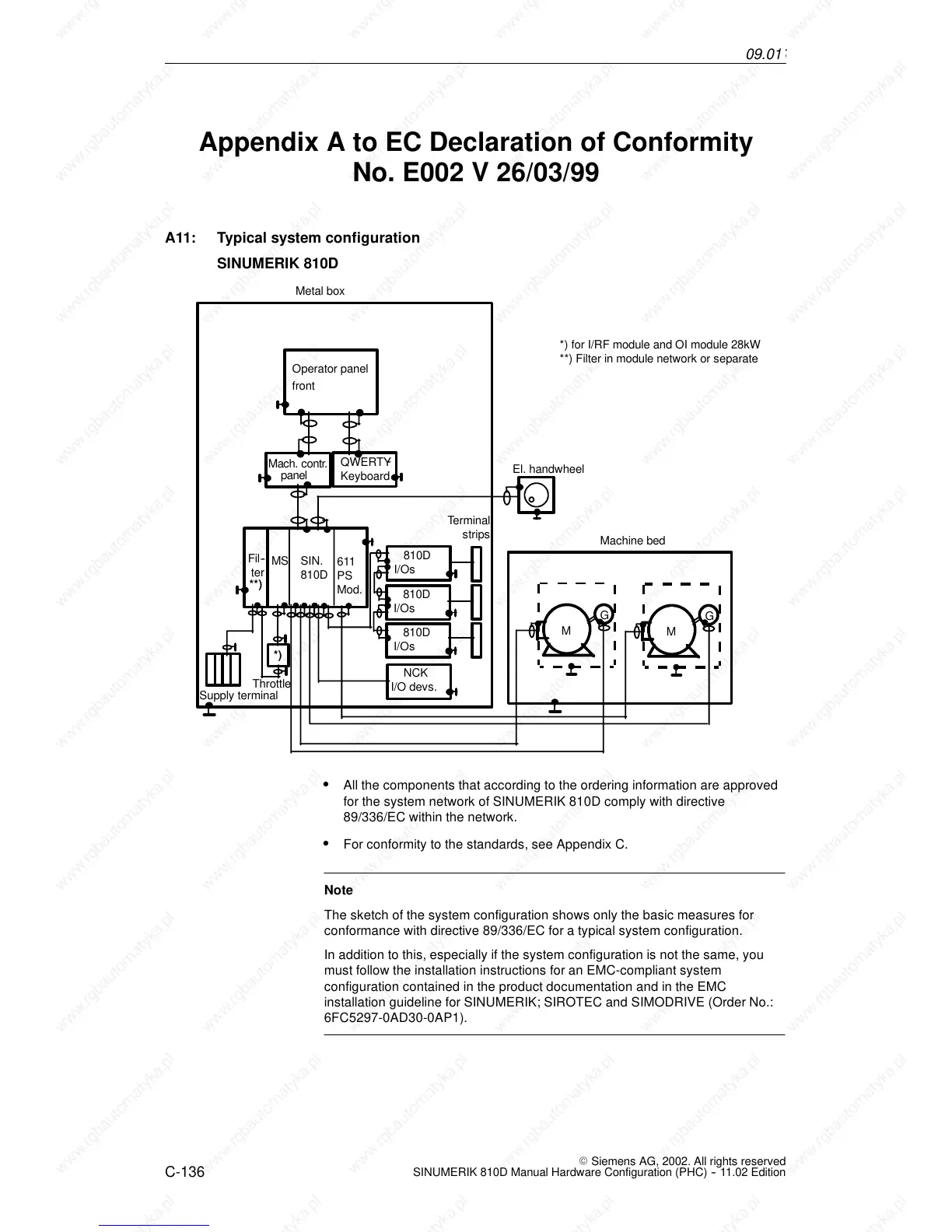

Appendix A to EC Declaration of Conformity
No. E002 V 26/03/99
A11: Typical system configuration
SINUMERIK 810D
Supply terminal
Metal box
Machine bed
QWERTY
--
Keyboard
Mach. contr .
panel
611
PS
Mod.
El. handwheel
M
G
M
G
810D
I/Os
810D
I/Os
810D
I/Os
NCK
I/O devs.
SIN.
810D
Fil--
ter
**)
MS
Terminal
strips
*) for I/RF module and OI module 28kW
**) Filter in module network or separate
*)
Throttle
Operator panel
front
S All the components that according to the ordering information are approved
for the system network of SINUMERIK 810D comply with directive
89/336/EC within the network.
S For conformity to the standards, see Appendix C.
Note
The sketch of the system configuration s hows only the basic measures for
conformance with directive 89/336/EC for a typical system configuration.
In addition to this, especially if the system configuration is not the same, you
must follow the installation instructions for an EMC-compliant system
configuration contained in the product documentation and in the EMC
installation guideline for SINUMERIK; SIROTEC and SIMODRIVE (Order No.:
6FC5297-0AD30-0AP1).
09.01
