12.95

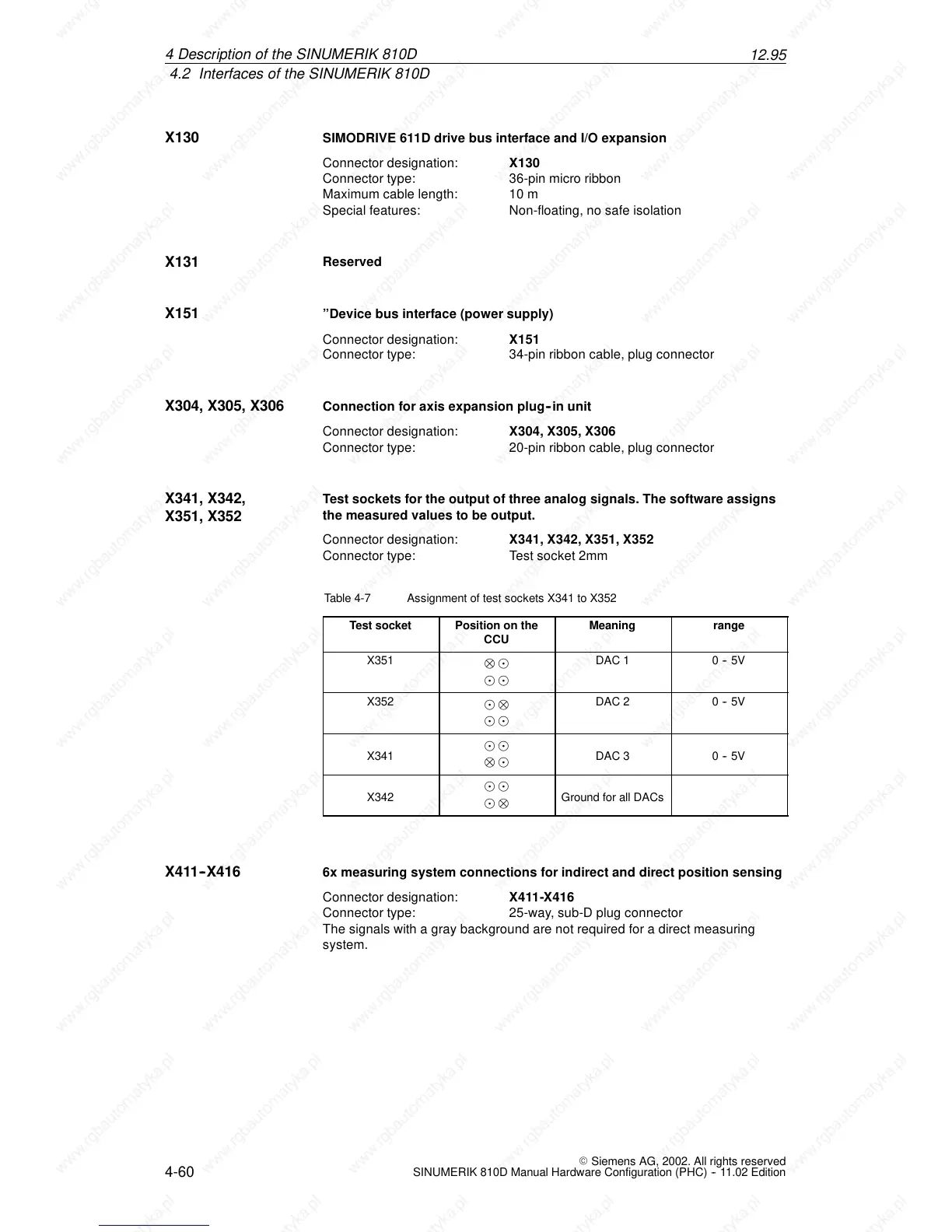

4.2 Interfaces of the SINUMERIK 810D
4-60
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
SIMODRIVE 611D drive bus interface and I/O expansion
Connector designation: X130
Connector type: 36-pin micro ribbon
Maximum cable length: 10 m
Special features: Non-floating, no safe isolation
Reserved
”Device bus interface (power supply)
Connector designation: X151
Connector type: 34-pin ribbon cable, plug connector
Connection for axis expansion plug--in unit
Connector designation: X304, X305, X306
Connector type: 20-pin ribbon cable, plug connector
Test sockets for the output of three analog s ignals. The software assigns
the measured values to be output.
Connector designation: X341, X342, X351, X352
Connector type: Test socket 2mm
Table 4-7 Assignment of test sockets X341 to X352
Test socket
Position on the
CCU
Meaning range
X351
ª¬
¬¬
DAC 1 0--5V
X352
»
¬¬
DAC 2 0--5V
X341
¬¬
ª¬
DAC 3 0--5V
X342
¬¬
»
Ground for all DACs
6x measuring system connections for indirect and direct position sensing
Connector designation: X411 -X416
Connector type: 25-way, sub-D plug connector
The signals with a gray background are not required for a direct measuring
system.
X130
X131
X151
X304, X305, X306
X341, X342,
X351, X352
X411--X416
4De
