4.2 Interfaces of the SINUMERIK 810D
4-64
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
4.2.4 CCU3: Description of the int erfaces, operating and display
elements
Position of the interfaces, operating and display elements
I/O bus/C bus
interface
MPI interface
I/O device
interface
(cable distri-
butor)
Error and
and status LEDs
(H1/H2)
7-segment
display
RESET butto n
PLC start-up switch
(S4)
NCK start-up switch
(S3)
611D drive bus
(master)
PCMCIA slot
Drive bus interface
X151
Pulse interfaces
(axes 4--6)
Test sockets
Measuring system
connections
X411--X416
Terminal
block
PROFIBUS DP
External pulse
interface (axis 3)
--X431
AS1
AS2
663
9
B
19
CB
PR
PS
PF
PF0
--
+5 V
NF
SF
--

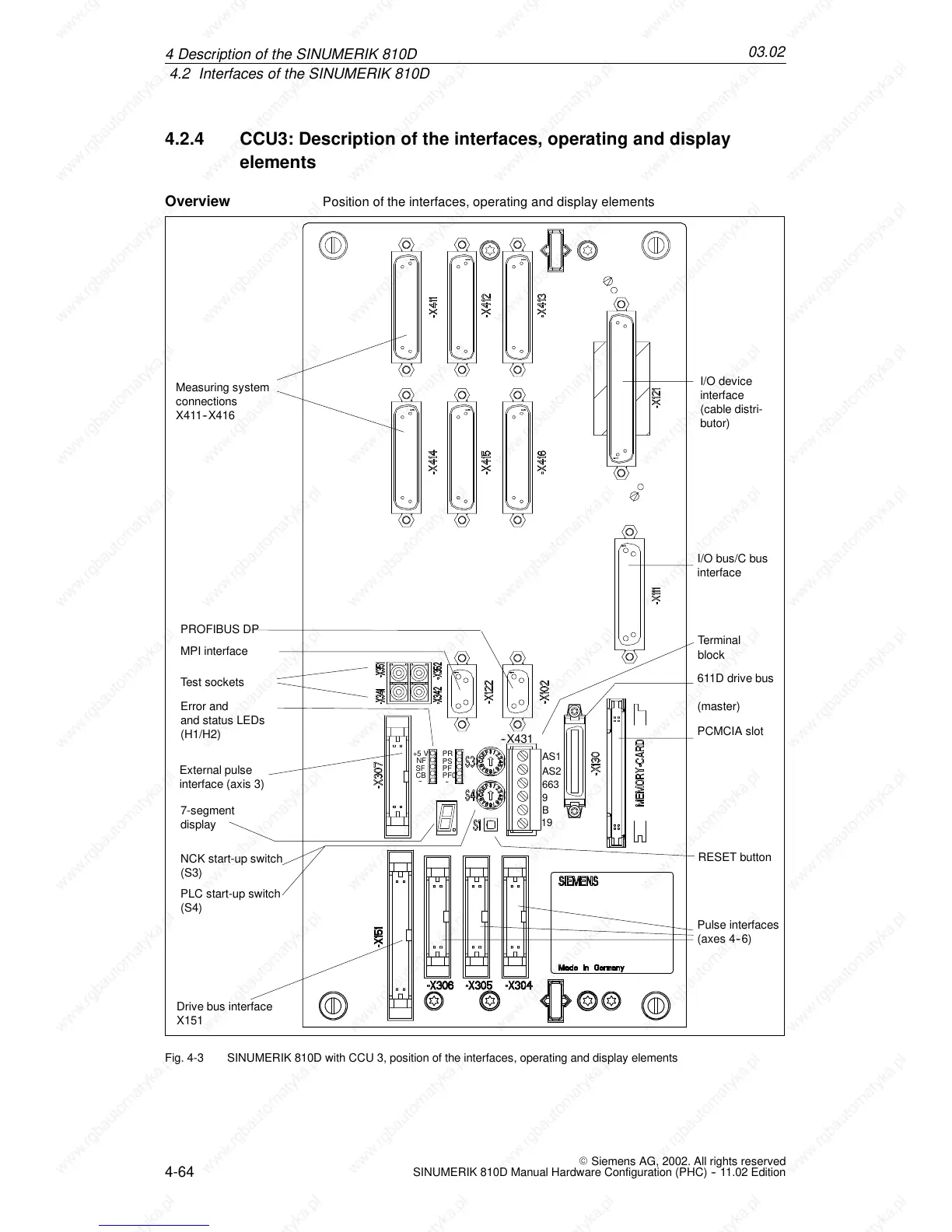

Fig. 4-3 SINUMERIK 810D with CCU 3, position of the interfaces, operating and display elements
