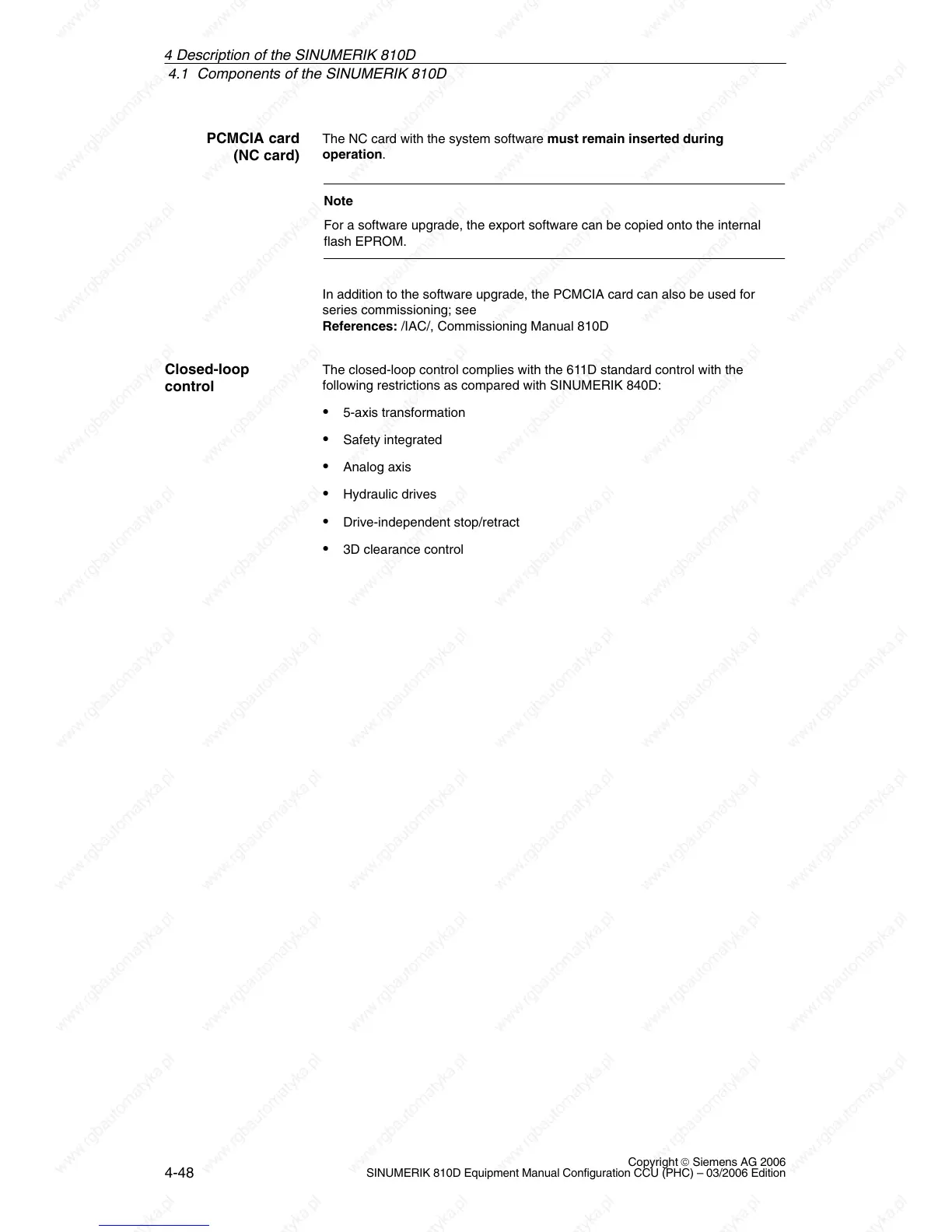

4.1 Components of the SINUMERIK 810D
4-48
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
The NC card with the system software must remain inserted during
operation.
Note
For a software upgrade, the export software can be copied onto the internal
flash EPROM.
In addition to the software upgrade, the PCMCIA card can also be used for
series commissioning; see
References: /IAC/, Commissioning Manual 810D
The closed-loop control complies with the 611D standard control with the
following restrictions as compared with SINUMERIK 840D:
5-axis transformation
Safety integrated
Analog axis
Hydraulic drives
Drive-independent stop/retract
3D clearance control
PCMCIA card
(NC card)
Closed-loop
control
4 Descri
