Axis Expansion
5.1 Axis expansion plug-in unit
The axis expansion plug-in unit is installed in a SIMODRIVE 611 power mo-
dule and then connected to the X304-X306 axis expansion terminal of the
SINUMERIK 810D. The plug-in unit is designed for 1-axis and 2-axis power
modules.
There is also an axis expansion plug-in unit left with terminals for connectors
X307 (CCU) und X301 (expansion plug-in unit) at the same height.
SIMODRIVE
SIEMENS
Axis expansion
plug-in unit
Axis expansion plug-in unit, left
Power supply
(I/R or OI)
LDC
LDC810D
(CCU3)

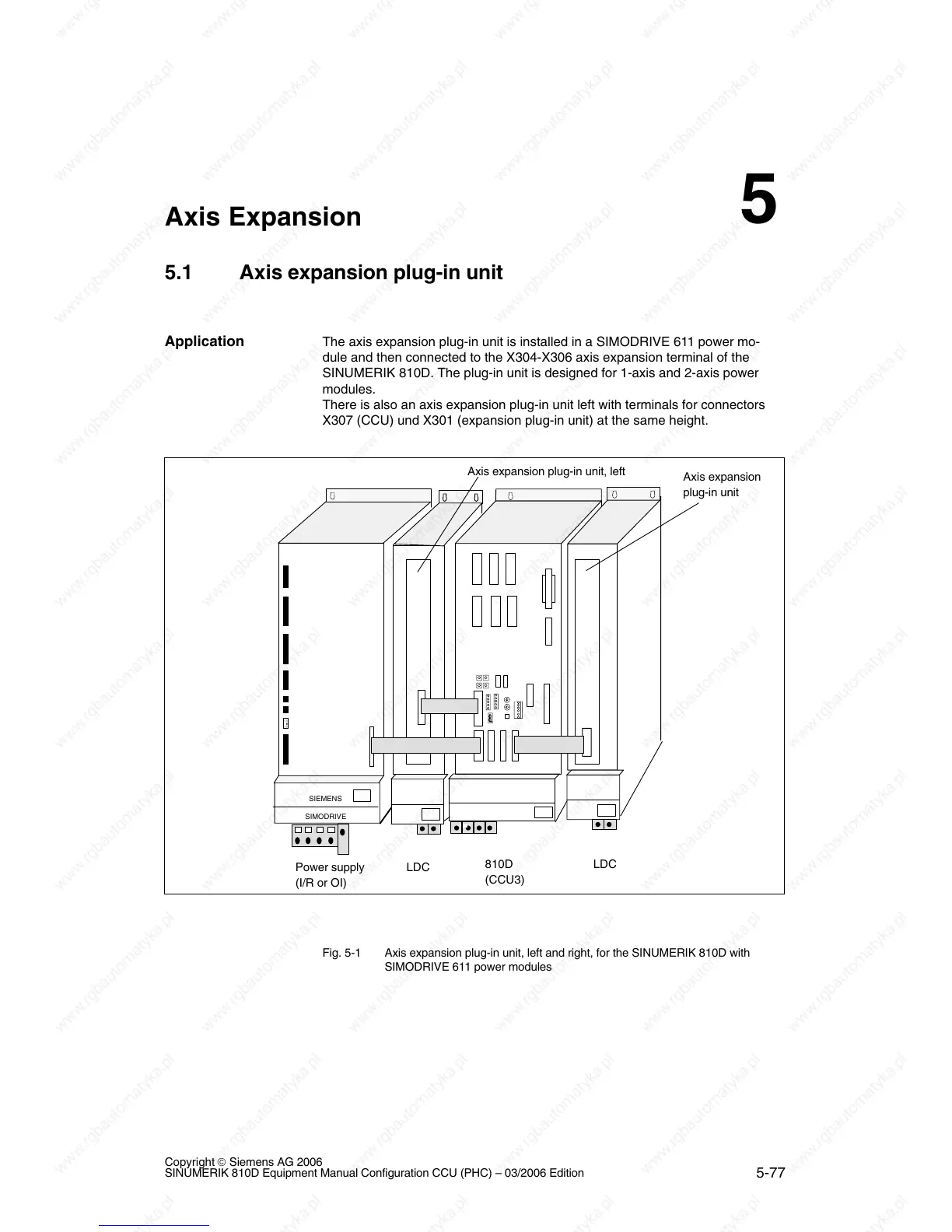

Fig. 5-1 Axis expansion plug-in unit, left and right, for the SINUMERIK 810D with
SIMODRIVE 611 power modules
Application
5
