5.1 Axis expansion plug-in unit
5-78
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
Note
On LT modules more than 50 mm wide and a permanently mounted device
bus, the free end of the device bus must be fixed to the 34-pole device bus
connector on the module.
SIMODRIVE 611
power module
Axis expansion
plug-in unit

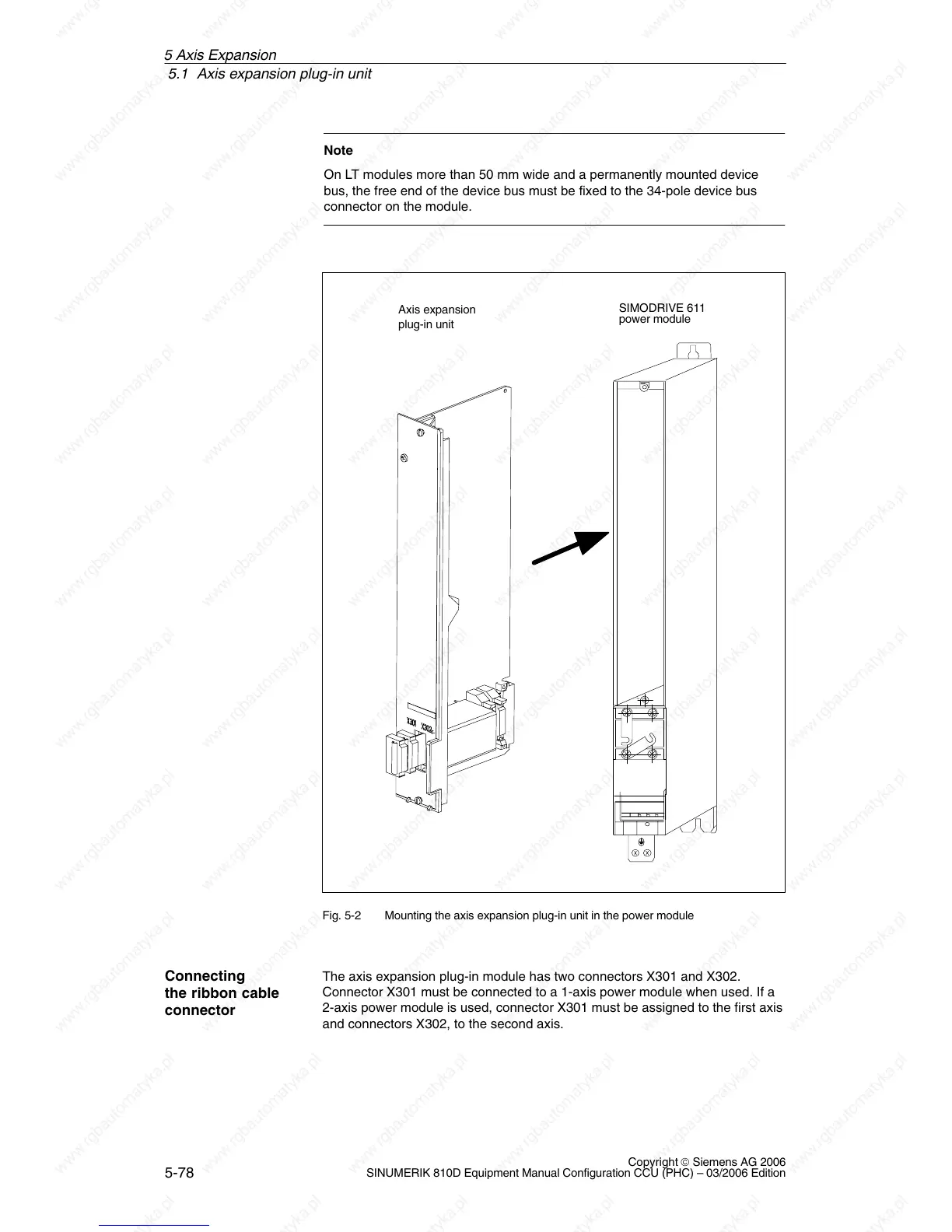

Fig. 5-2 Mounting the axis expansion plug-in unit in the power module
The axis expansion plug-in module has two connectors X301 and X302.
Connector X301 must be connected to a 1-axis power module when used. If a
2-axis power module is used, connector X301 must be assigned to the first axis
and connectors X302, to the second axis.
