SIPART DR20 Project Planning Manual

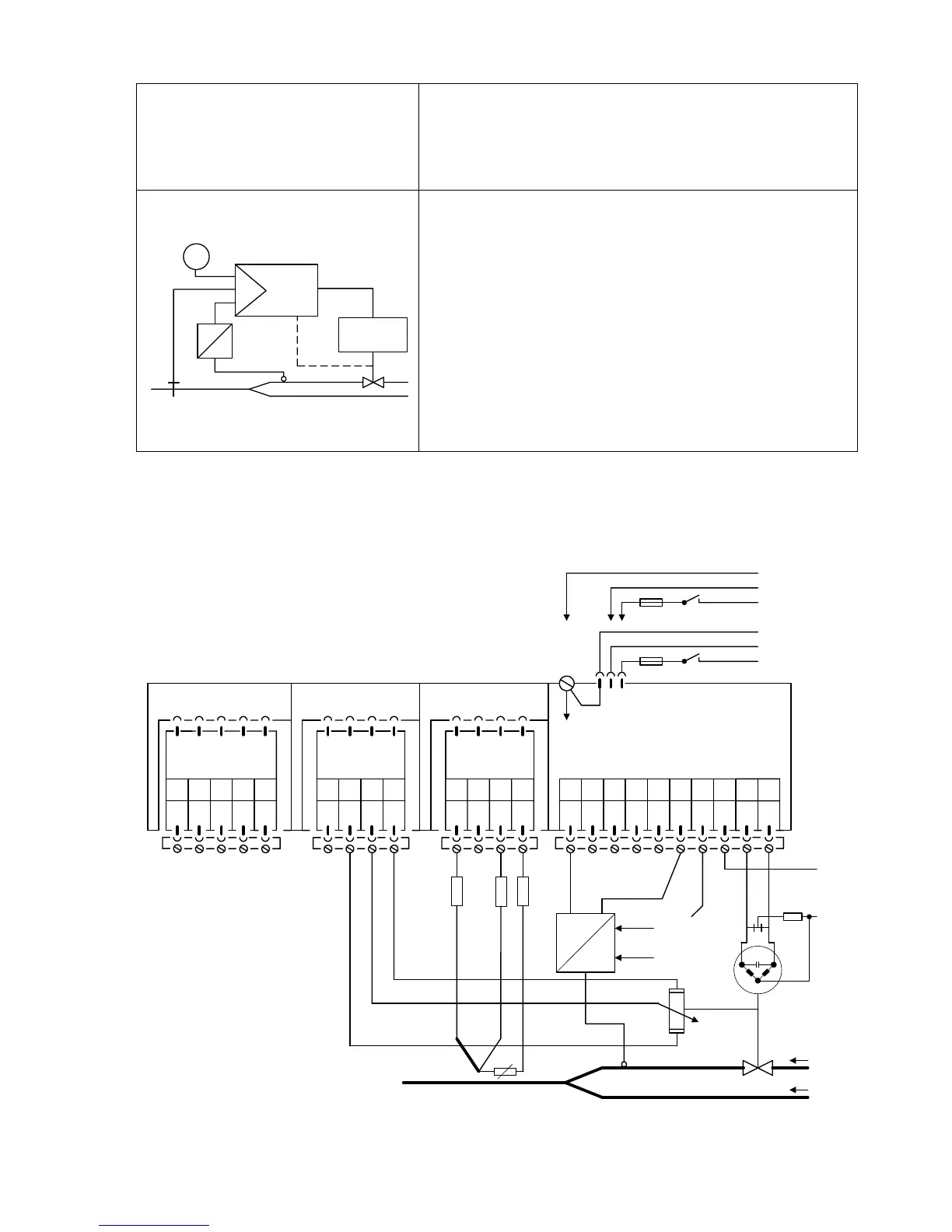

Planning example S5
Fixed setpoint control with disturbance variable feed-
forward (two-component control). Controlled variable x1
direct from Pt 100, disturbance variable x2 from
transmitter. Position feedback from resistance transmitter
W
X
1
y
Drive
X
2
Y
R
Connect the controlled variable x1 (Pt 100, three-wire
circuit) to slot AE3. The measuring range is programmable.
The min. span is 50 K, the min. start-of-scale value is
- 50 °C, the max. full-scale value is 850 °C (see
instructions on page 76). Connect the disturbance variable
x2 to analog input AE1.
The controlled variable and disturbance variable can be
interchanged (S8 = 0, S10 = 0).
Feedback of final control element position via resistance
transmitter at AE4 (instruction on page 76).
The alarm circuit monitors the negative deviation xd for
max./min. deviations (set parameters A2 and A1 !).
Please refer to the remarks on page 108 and the note on page 15 !
Setting of configuring switches: S1 = 1, S2 = 2, S8 = 1, S9 = 1, S10 = -2, S32 = 1
AE1 AE2 BE BA L+ GND GND L
12345678
SIPART DR20 S
6DR2001-1 (AC 230 V)
6DR2001-2 (AC 115 V)
6DR2001-4 (UC 24 V)
123412341234
PE
N
L
AC 115 V
AC 230 V
⎫
⎬
⎭
PE
N
UC 24 V
L
⎫
⎬
⎭
Slot 3 GW Slot 2 AE4 Slot 1 AE3
- ∆ y+ ∆ y
910
5
M1 A1 R1 A2 M2
Option module
6DR2800-8R
Option module
6DR2801-8A
M M/A S E
L
N
I
R
E
R
A
S
R = R
A
+ ∆ R + R
E
Power supply
+-
Option module
6DR2800-8P
R
L3
R
L4
Pt100
R
L1
R
L1
= R
L3
= R
L4
≤ 50 Ω
129
