Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
17
Combination operation
4
4.1
Slots for analyzer modules

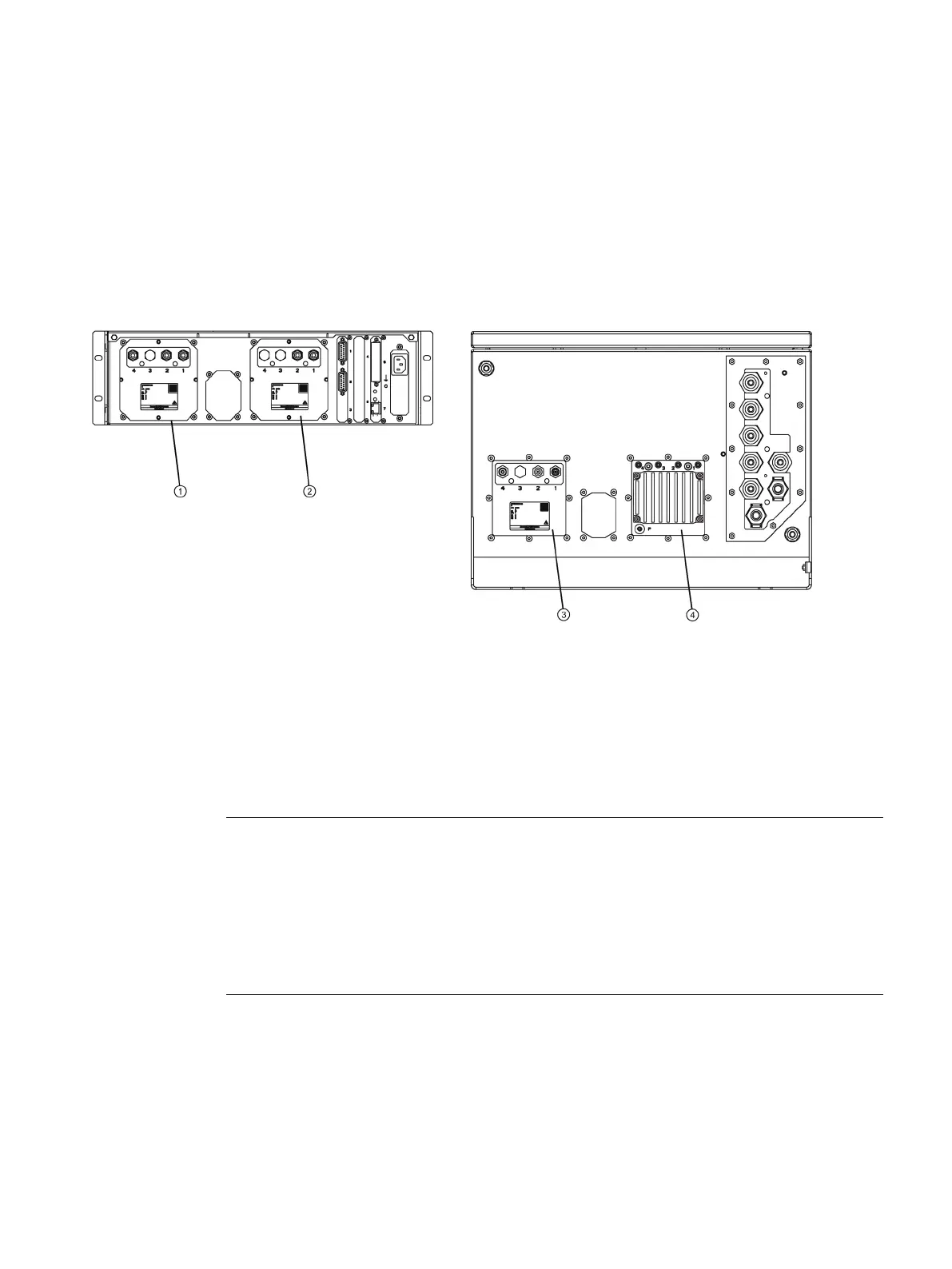

The figure below shows the slots for the analyzer modules.
Rack-mounted device - rear view:
①
Slot 1 (AM1), example OXYMAT 7
②
Slot 2 (AM2), example CALOMAT 7
Wall-mounted device - rear view:
③
Slot 1 (AM1), example OXYMAT 7
④
Slot 2 (AM2), example ULTRAMAT 7
Figure 4-1 Slots for analyzer modules
Note
High-temperature analyzer modules
The
-high-temperature analyzer modules OXYMAT 7 and ULTRAMAT 7 are designed solely
for wall
-
mounted devices and, because of their size, can only be installed individually into the
wall
-mounted device. A high-temperature analyzer modules takes up both slots (AM1 and
AM2). For additional information on the layout of the gas connections for the OXYMAT 7,
refer to the
Figure 6-3 Gas connections of a high-temperature OXYMAT 7 in the wall-
mounted unit, bottom
(Page 45).
