6.2 Electrical connections
56
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
Electrical connections and pin assignments at the rack-mounted device
Note
Number of inputs and outputs
The number of inputs/outputs that are actually available in the device depends on the
installed optional modules. The paragraph below includes an overview of all inputs/outputs.

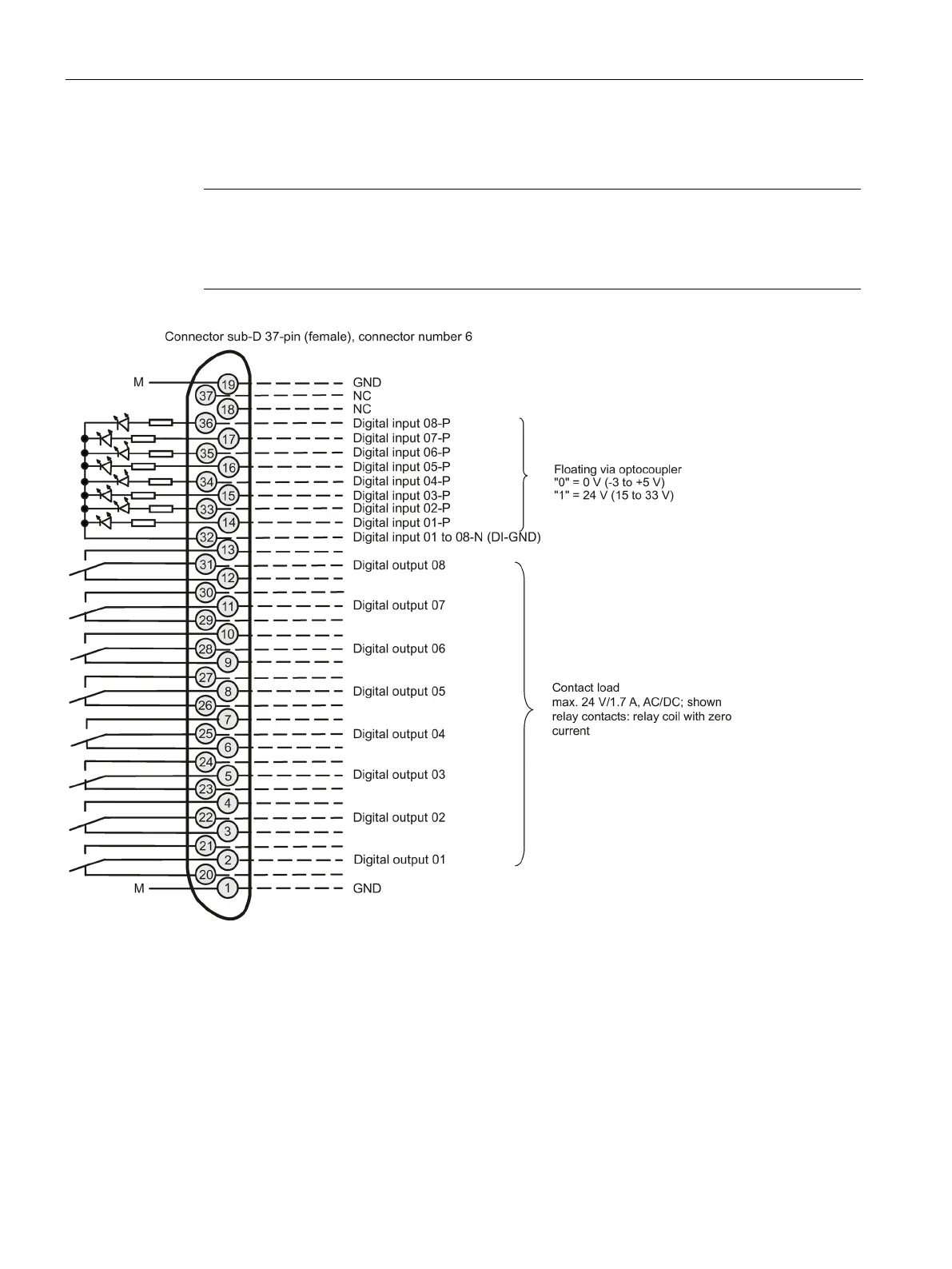

Figure 6-11 Pin assignments of processing module
