Siemens SIPROCESS GA700 Quick Start

Combination operation
4.3 Gas connections
22
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
4.3.2
Mounting conditions

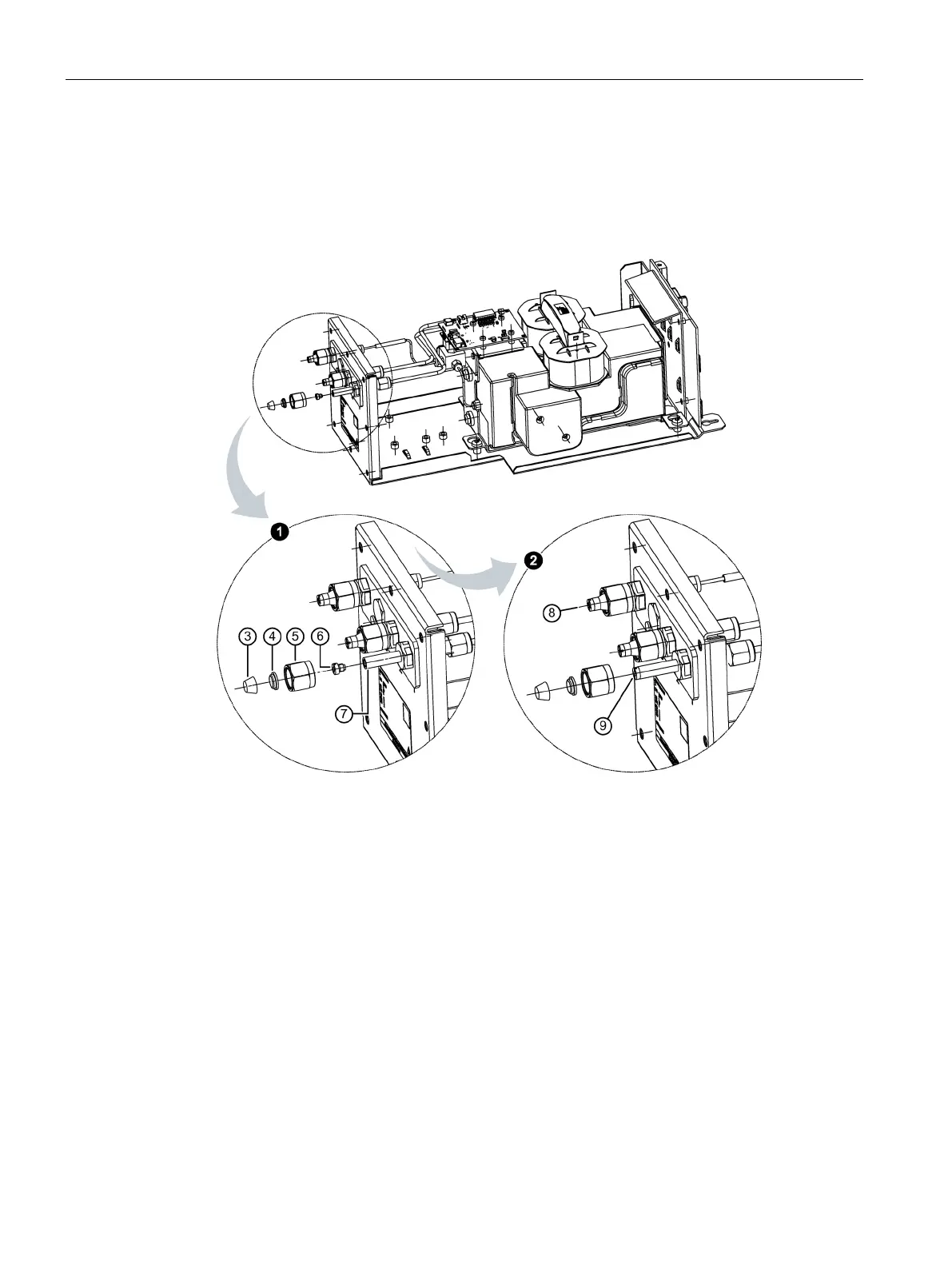

Overview of mounting position
①
Gas connection before installation of sample gas restrictor or clamping screw
②
Gas connection after installation of sample gas restrictor or clamping screw
③
Rear clamp ring
④
Front clamp ring
⑤
Union nut
⑥
Sample gas restrictor or clamping screw
⑦
Gas connection
⑧
Correctly installed gas connection
⑨
Gas connection nozzle with sample gas restrictor or clamping screw
Figure 4-4 Mounting position sample gas restrictor or clamping screw
