Connecting
6.2 Electrical connections
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
61
Connecting the signal cables
Overview
Cable glands for signal lines (7 pieces)

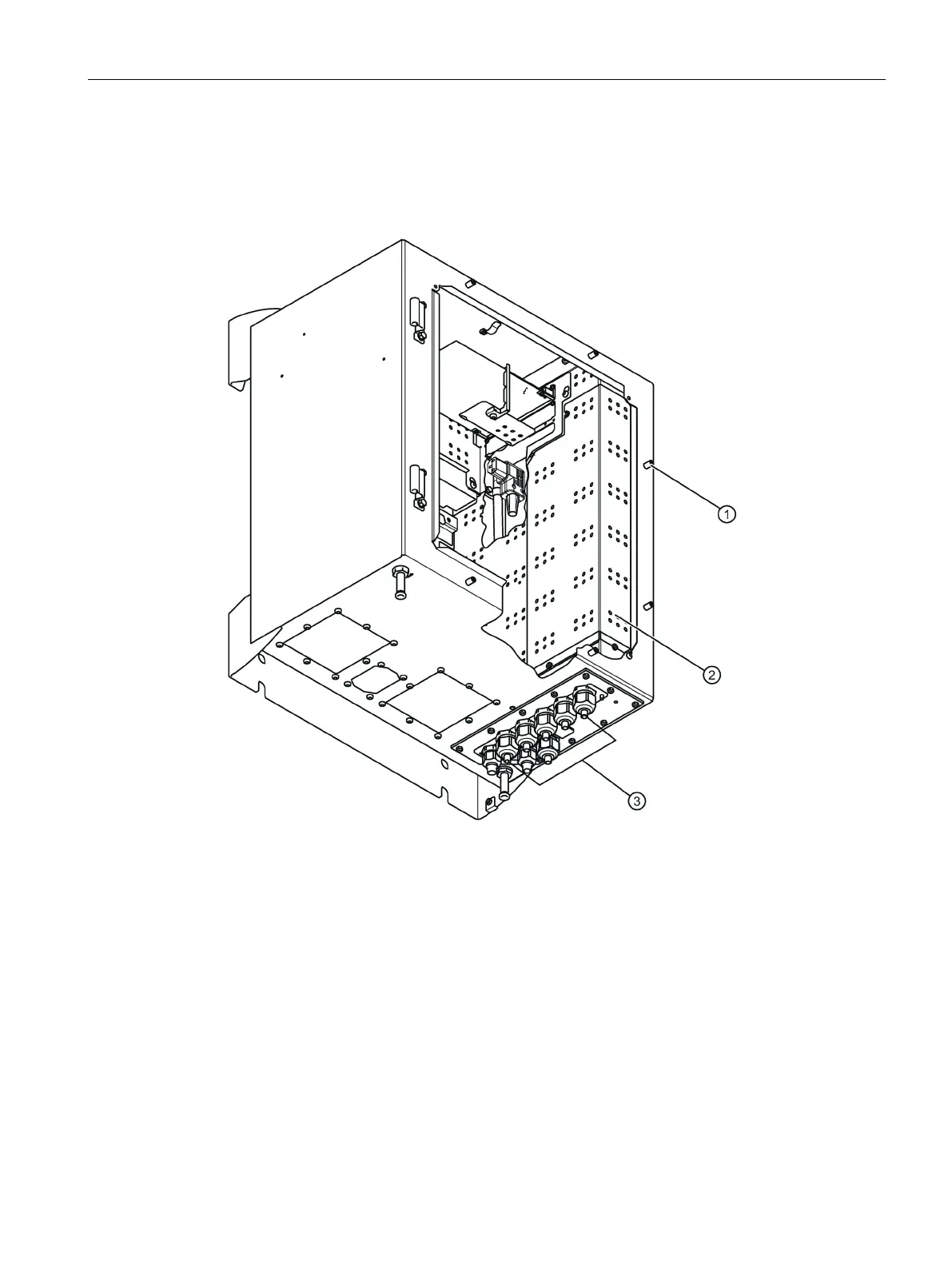

Figure 6-15 Wall-mounted device, connecting signal cables
1. Undo the six screws ① and open the door of the wall-mounted device.
2. Remove the shielding plate
② on the right side panel. To do this loosen the screws.
3. Strip the end of signal cable to a length of approx. 1 cm.
4. Loosen the union nut from the respective cable gland
③ on the underside of the wall-
mounted device.
