6.1 Gas connections
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
49

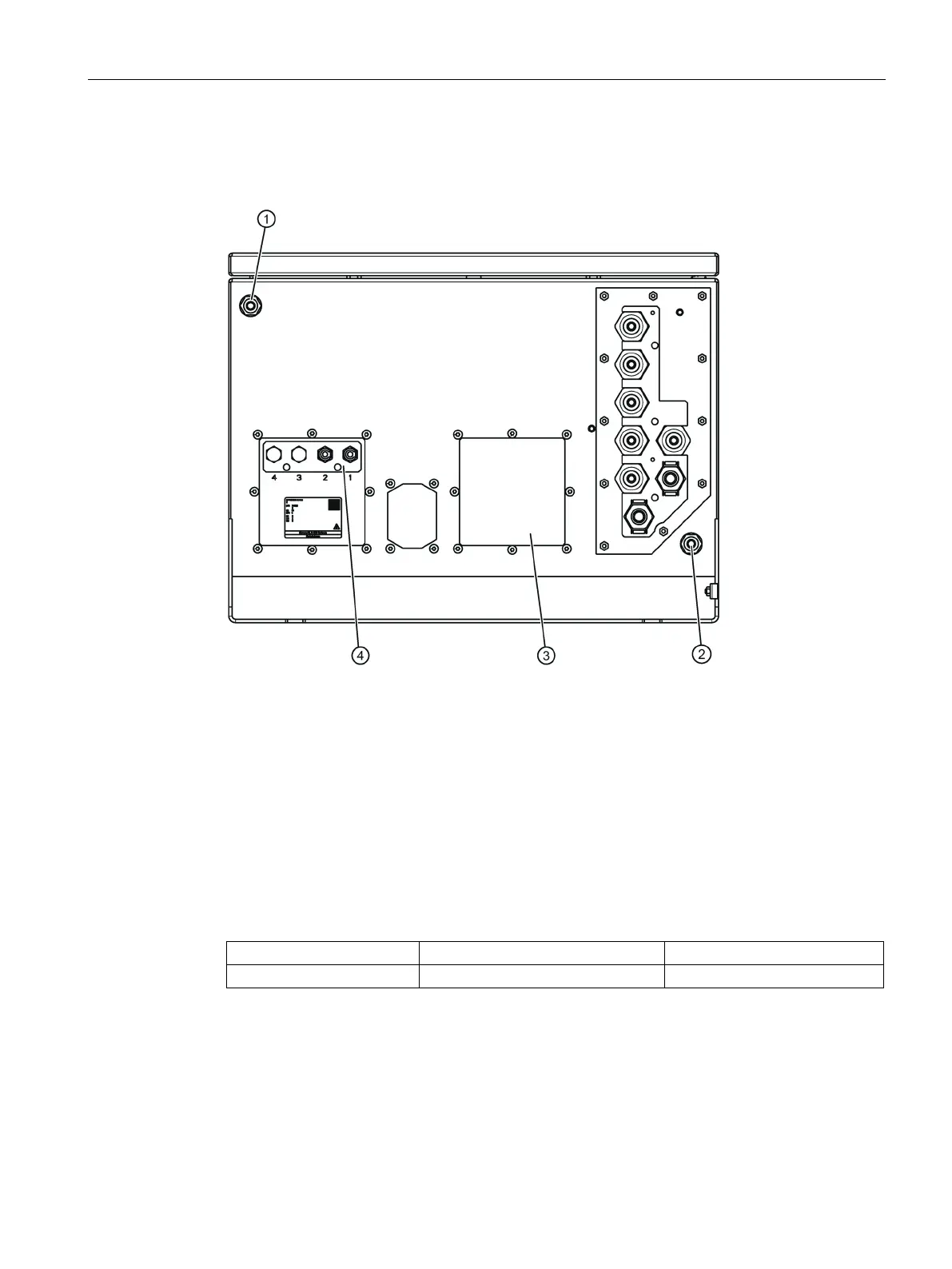

Arrangement of the gas connections in the wall-mounted device
①
Purging gas inlet
②
Purging gas outlet
③
Slot of analyzer module 2
④
Slot of analyzer module 1: CALOMAT 7
1
Sample gas inlet
2
Sample gas outlet
3
Not assigned
4
Not assigned
Figure 6-7 CALOMAT 7 gas connections in the wall-mounted device, lower side
Design of the gas connections
Gas connection
Material
Nozzle external diameter
Sample gas
Stainless steel Material No. 1.4571
6 mm
