Connecting
6.2 Electrical connections
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
63
2. Fasten the prepared gland at the device:

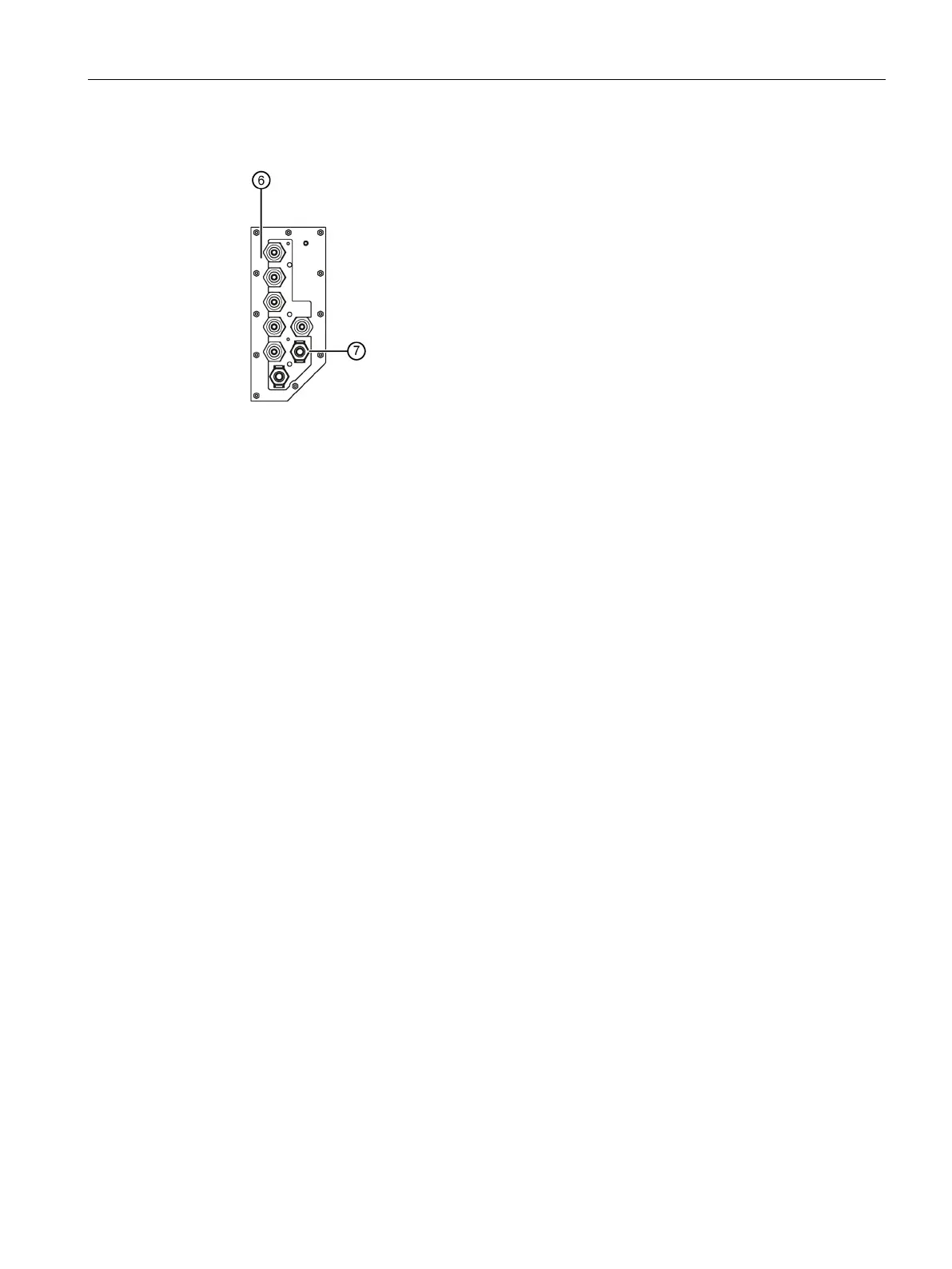

Position cable gland Ethernet cable (underside of the device)
Figure 6-17 Ethernet cable: Position of the cable gland
– Fasten the Ethernet cable in the cable gland ⑦ at the plate ⑥.
Connecting the Ethernet cable
1. Isolate the free cable end.
2. Assemble the stripped cores in a FastConnect plug.
3. Insert the Ethernet plug into the service interface of the processing module. You must feel
for the position of the interface.
