6.2 Electrical connections
66
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06

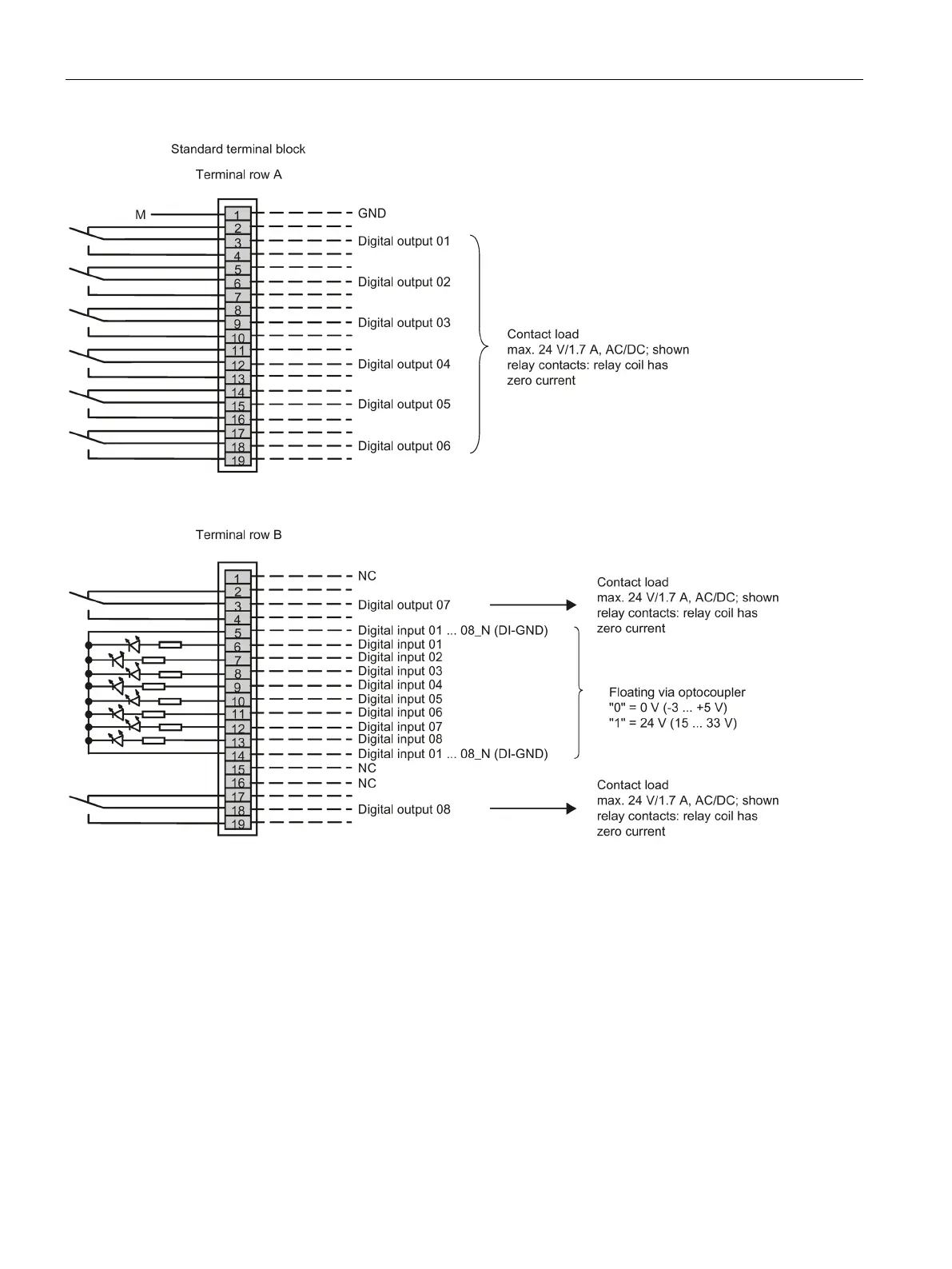

Figure 6-19 Pin assignment of standard terminal block, terminal rows A and B
