4.4.3.3 Device with one ULTRAMAT 7 analyzer module, high-temperature version
Overview
Y
X
Z

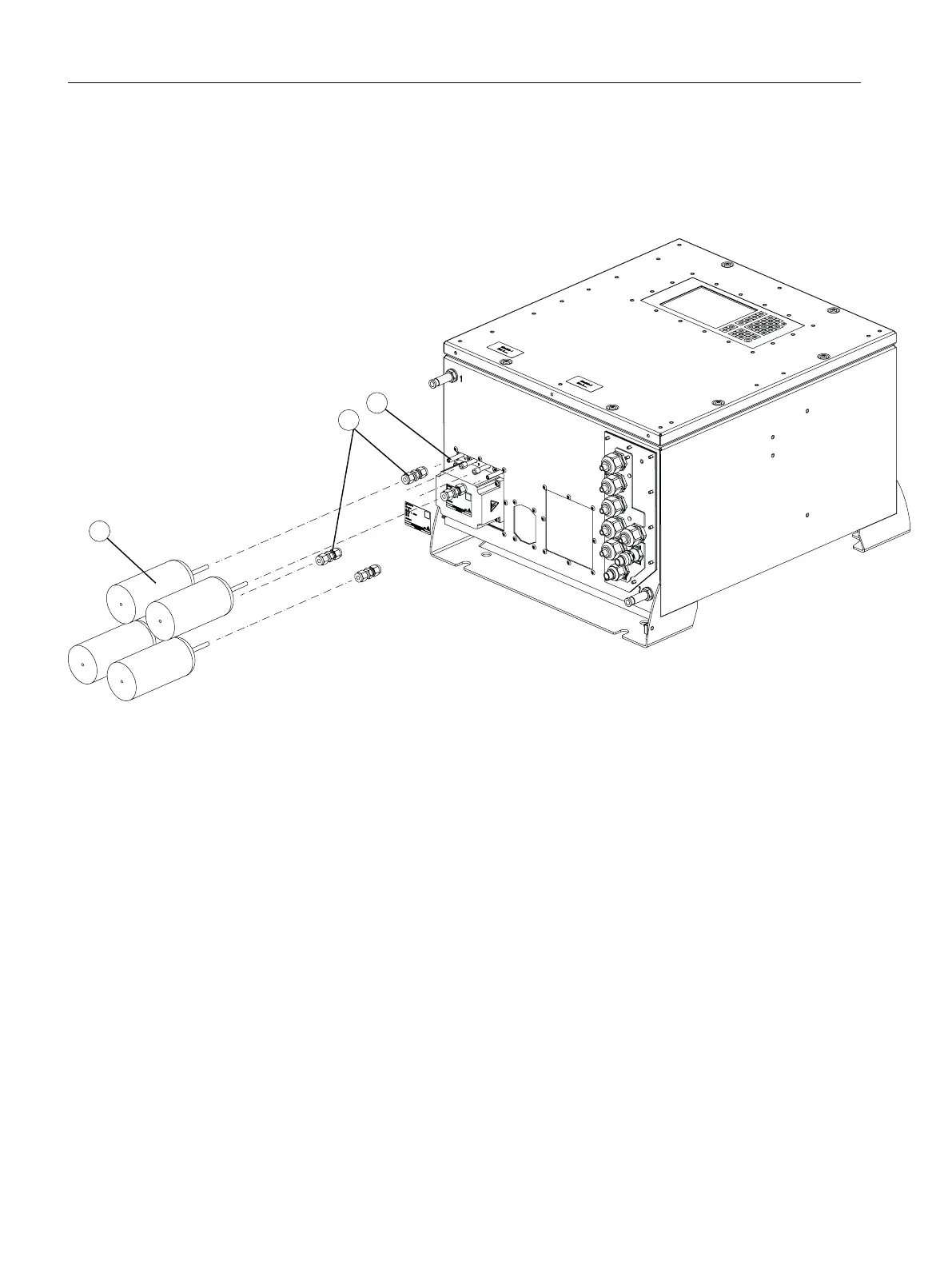

① Gas connections for sample and reference gas
② 6 mm 󹪝tting (for 1/4" pipe use appropriate adapter) (4 pieces)
③ Heated external sample gas and reference gas lines (not included in scope of delivery)
Figure4-1 ULTRAMAT 7 high-temperature version, connecting gas
