1 Shut-o󹪜 valve
2 Pressure regulator
3 Unscrewing blanking plugs
4 Sample gas inlet
5 Manometer (gauge pressure)
6 Sample gas outlet
5.4.1.3 Recommended test setup for the ULTRAMAT 7 high-temperature

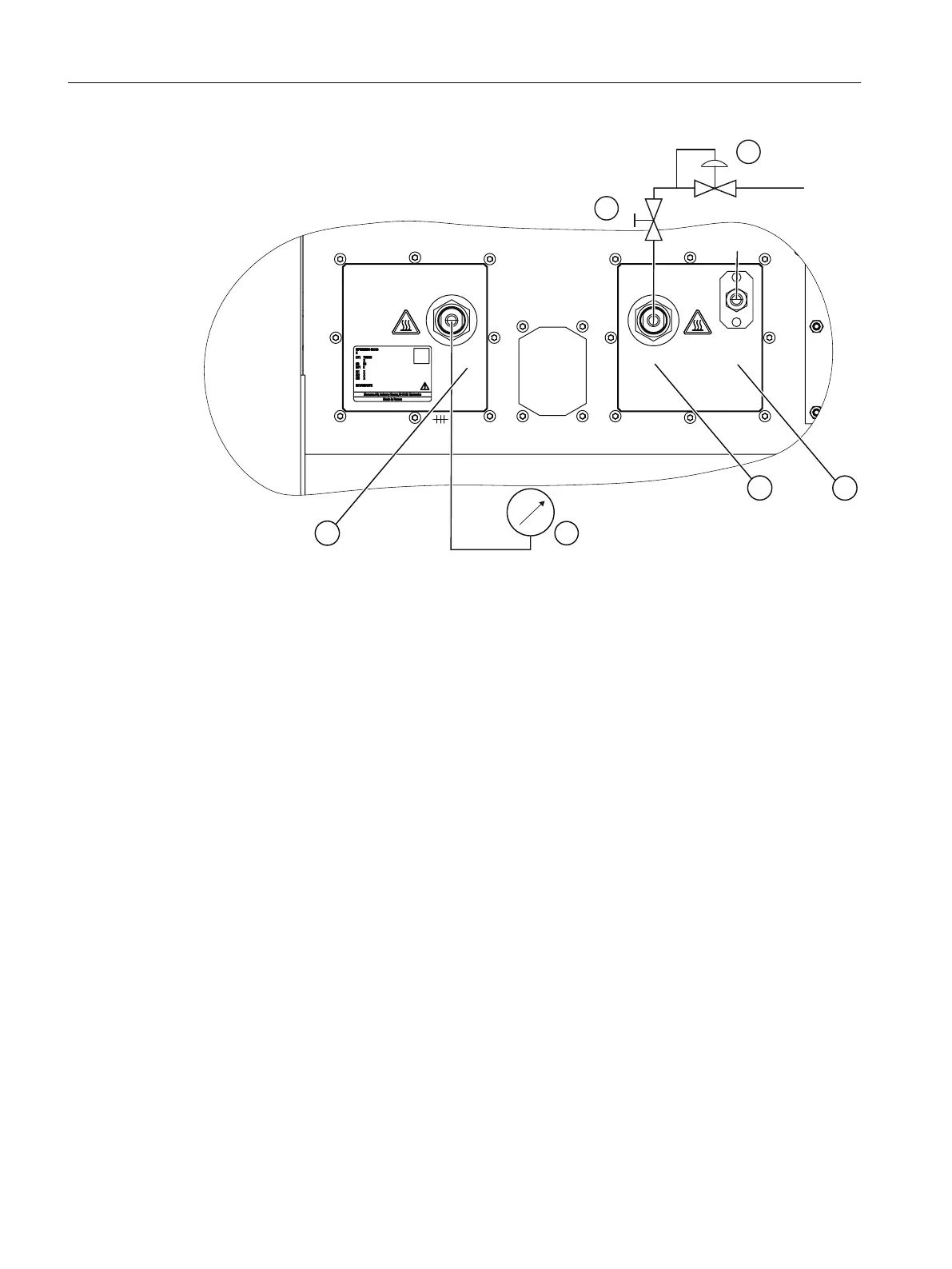

Arrangement of gas connections in the ULTRAMAT 7 high-temperature in the wall-mounted
device
The following 󹪝gure shows the gas connections of a high-temperature ULTRAMAT 7:
Commissioning
5.4Checking gas paths for leaks
SIPROCESS GA700 rack and wall mounted devices
72 Compact Operating Instructions, 06/2023, A5E35134047-AB
