1. Prepare the Ethernet cable:




① Cable gland
②④ Contact shielding
③ Ethernet cable
⑤ Shielding braid

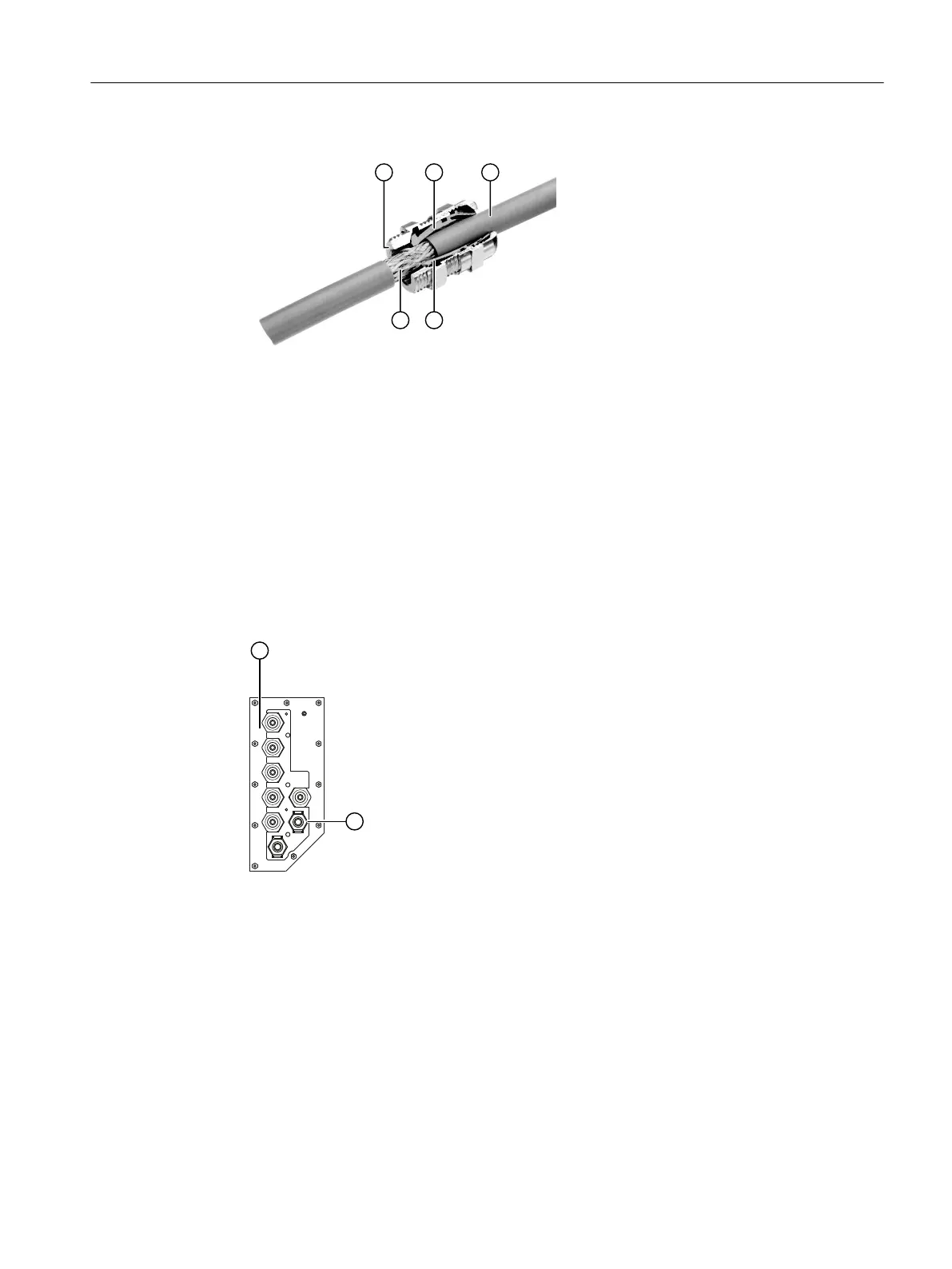

Figure4-2 Ethernet cable shielding
– Isolate the Ethernet cable ③ at the desired location so that the braid ⑤ is exposed over
a length of approx. 1 cm.
– Insert the Ethernet cable through the cable gland. Make sure that the exposed shielding
braid rests on the shield contact ② or ④.
– Screw the cable gland closed.
2. Fasten the prepared gland at the device:


⑥ Plate with cable glands
⑦ Position cable gland Ethernet cable (underside of the device)
Figure4-3 Ethernet cable: Position of the cable gland
– Fasten the Ethernet cable in the cable gland ⑦ at the plate ⑥.
Connecting the Ethernet cable
1. Strip the free cable end.
2. Assemble the stripped cores in a FastConnect plug.
3. Insert the Ethernet plug into the ethernet interface of the processing unit. You must feel for
the position of the interface.
Connecting
4.5Electrical connections
