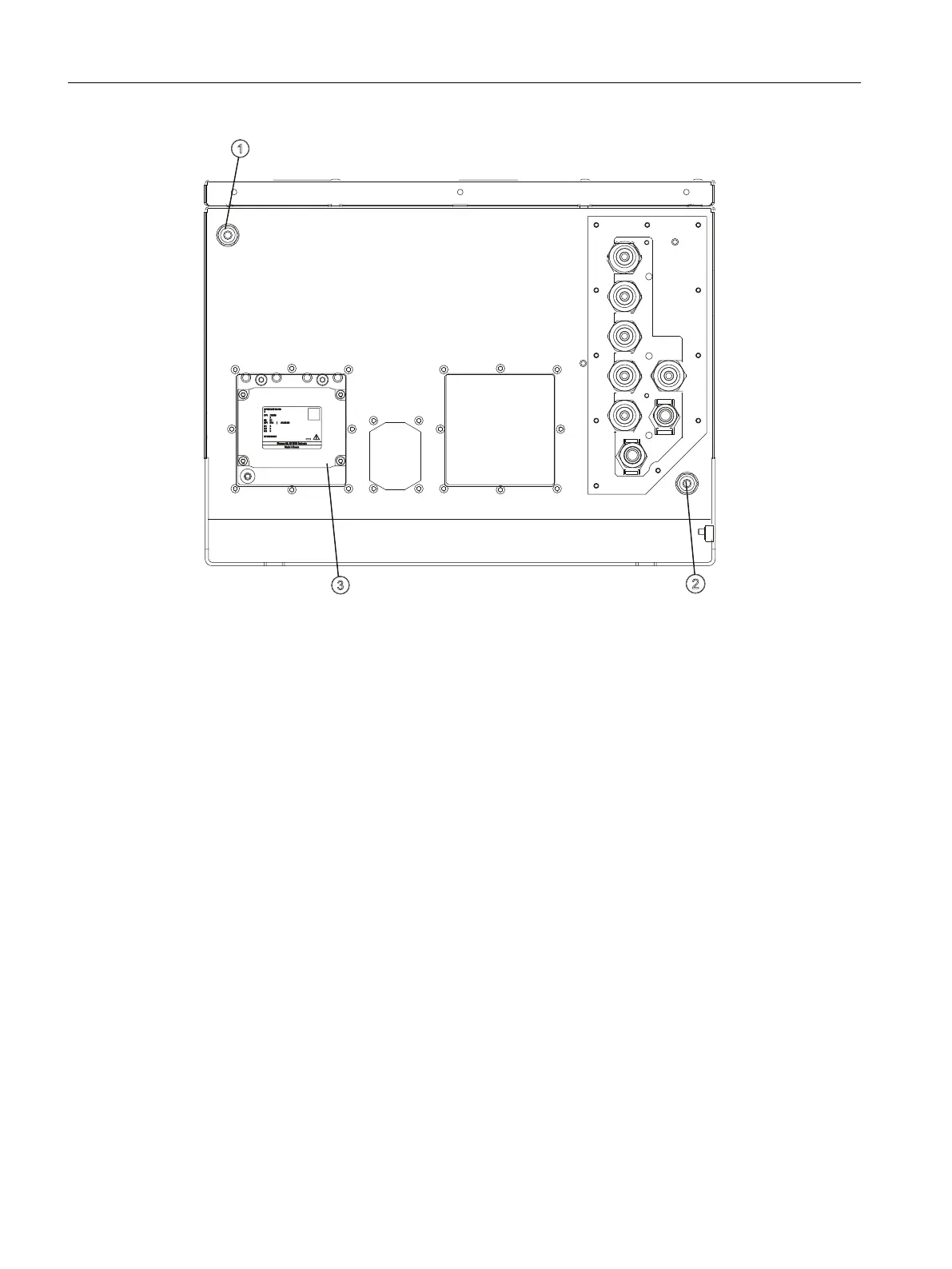

① Purging gas inlet   
② Purging gas outlet   
③ Slot of analyzer module 2: ULTRAMAT 7   
 Gas connections:   
 1 Sample gas in‐
let
 
 2 Sample gas out‐
let
 
 3 Reference gas
outlet
 
 4 Reference gas
inlet
 
 P Atmospheric
pressure sensor
(for Ex devices
equipped with
󹪞ame arrestor)
 
Connecting
4.7Connecting the wall-mounted device
SIPROCESS GA700 rack and wall mounted devices
54 Compact Operating Instructions, 06/2023, A5E35134047-AB
