7SJ45 Handbuch Technische Daten
C53000-K1174-C001-7 41
Anschlussbeispiele

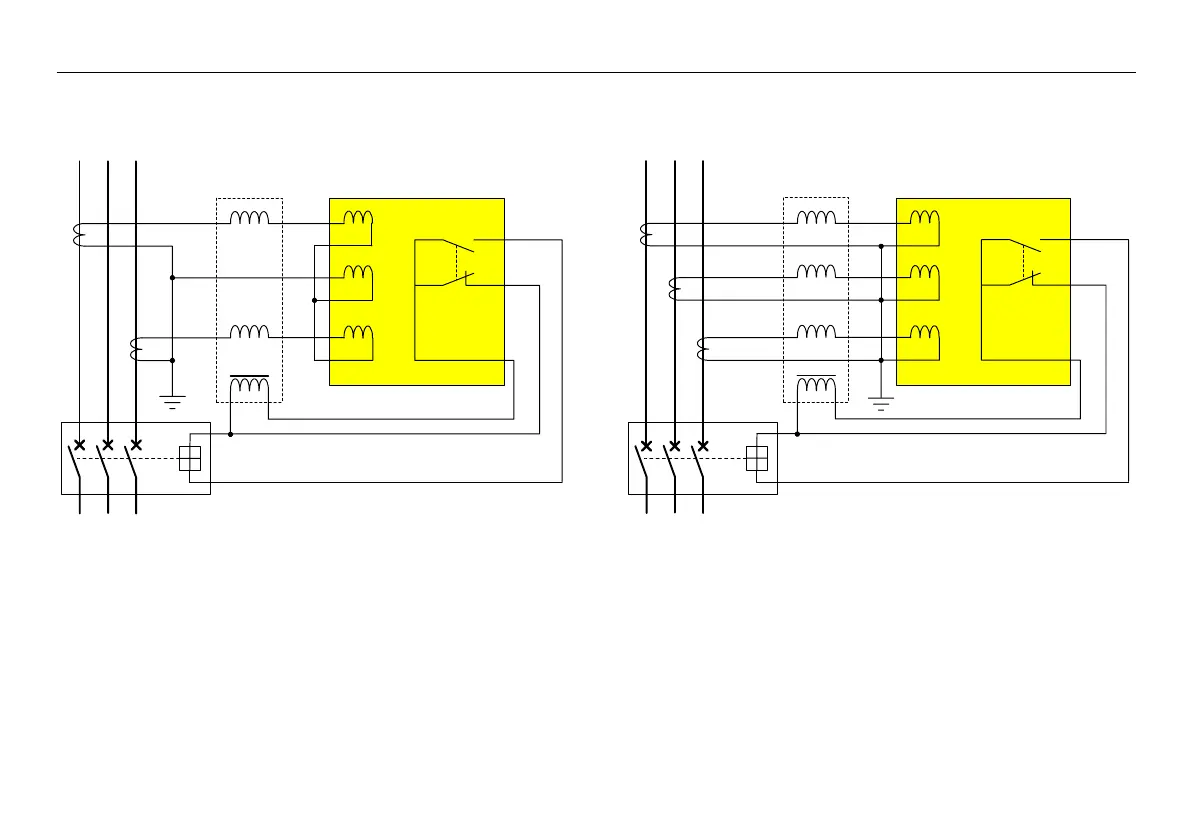

Bild 1-24 2-Wandlerschaltung mit Hilfswandler und Auslö-
serelais
Bild 1-25 3-Wandlerschaltung mit Hilfswandler und Auslö-
serelais
7SJ45XX-1
L1 L3L2
4AM5070-8AB
4AM5065-2CB
3AX1102-2A
oder
3AX1102-2B
7SJ45XX-1
L1 L3L2
4AM5070-8AB
4AM5065-2CB
3AX1102-2A
oder
3AX1102-2B
