Manual 7SJ45 Installation and commissioning
C53000-K1174-C001-7 59
2.9.2 Standard rail mounting

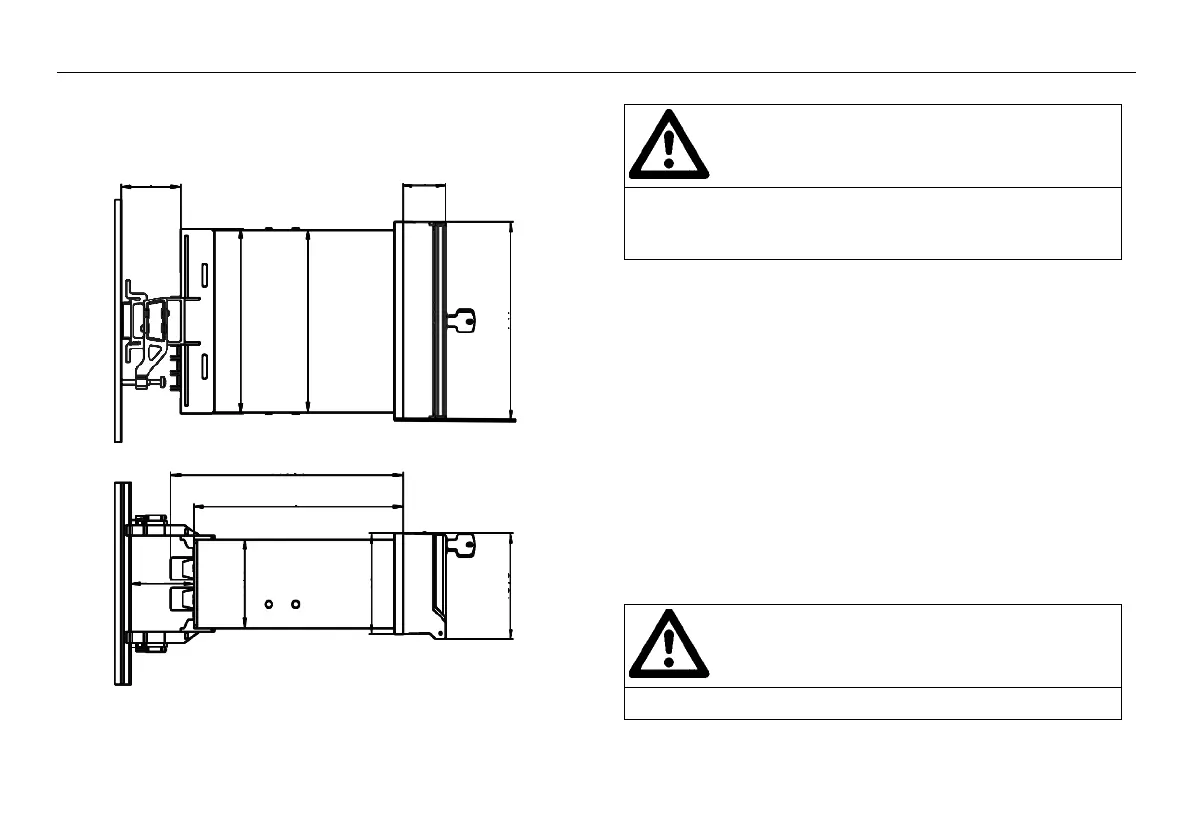

Figure 2-7 Standard rail mounting
The device can be installed on a 35 mm standard DIN rail
(acc. to DIN EN 50022). Proceed as follows for the installation:
• Remove the four M2 screws in the corners of the rear plate.
• Assemble the DIN rail adapter according to the enclosed
assembly instructions.
• Place the DIN rail adapter and fasten it with screws M2×12
(coming with the device) integrating the washers.
• Snap the device with the DIN rail adapter fitted onto the DIN
railandfastenitwithscrews.
44.5 32.5
173.3
156.2
47
137
135.7
147
65.5
75
78.5
WARNING!
All electrical connections must be made before installing the
protection device on the DIN rail. The screw terminal blocks are no
longer accessible after installation on the DIN rail.
WARNING!
The DIN rail adapter is recommended for local mounting only.
