Manual 7SJ45 Technical Data
C53000-K1174-C001-7 80
Connection examples

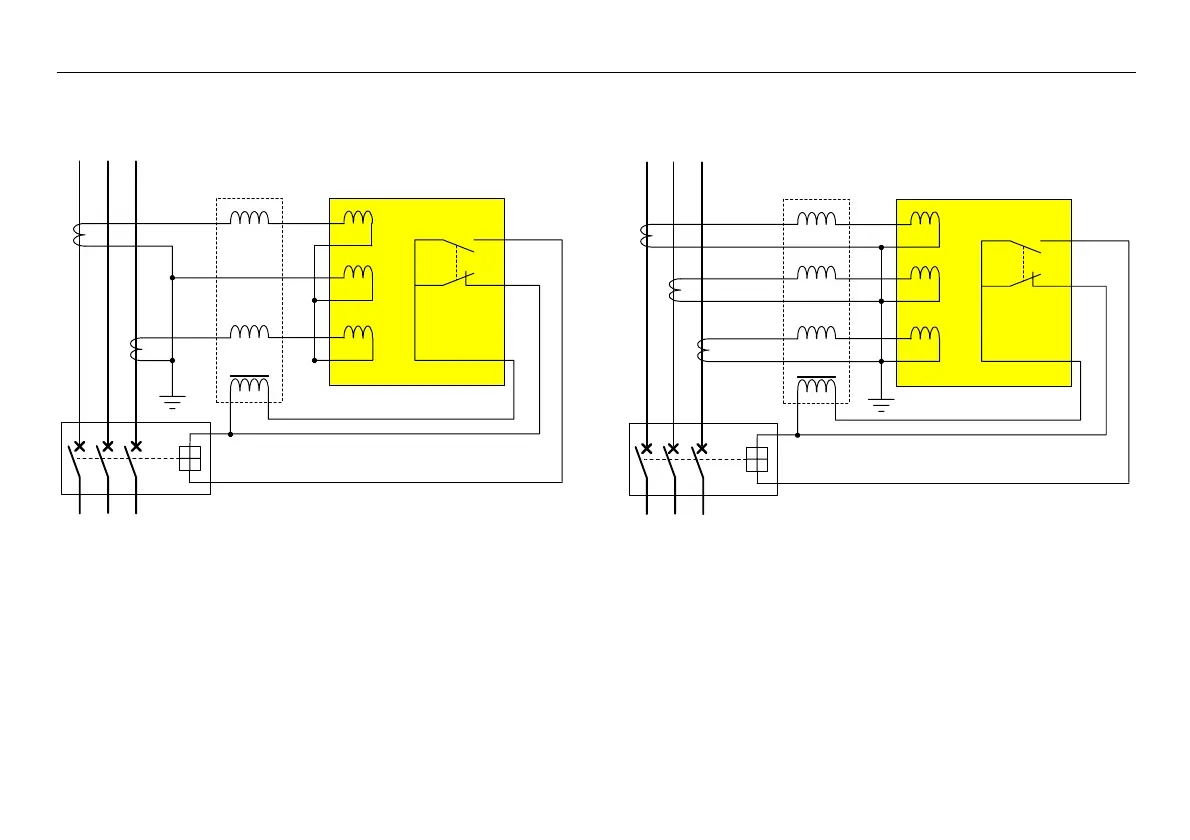

Figure 2-24 2-phase CT connection with auxiliary trip
transformer and relay output
Figure 2-25 3-phase CT connection with auxiliary trip
transformer and relay output
7SJ45XX-1
L1 L3L2
4AM5070-8AB
4AM5065-2CB
3AX1102-2A
or
3AX1102-2B
7SJ45XX-1
L1 L3L2
4AM5070-8AB
4AM5065-2CB
3AX1102-2A
or
3AX1102-2B
