Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
513
Input/Output Board C-I/O-2 up to Release 7SD5 .../EE
There are two different releases of the input/output board C-I/O-2 available. For devices up to the release
7SD5.../EE, the layout of the printed circuit board is shown in Figure 3-8, for devices of release 7SD5.../FF and
higher, it is shown in Figure 3-9.

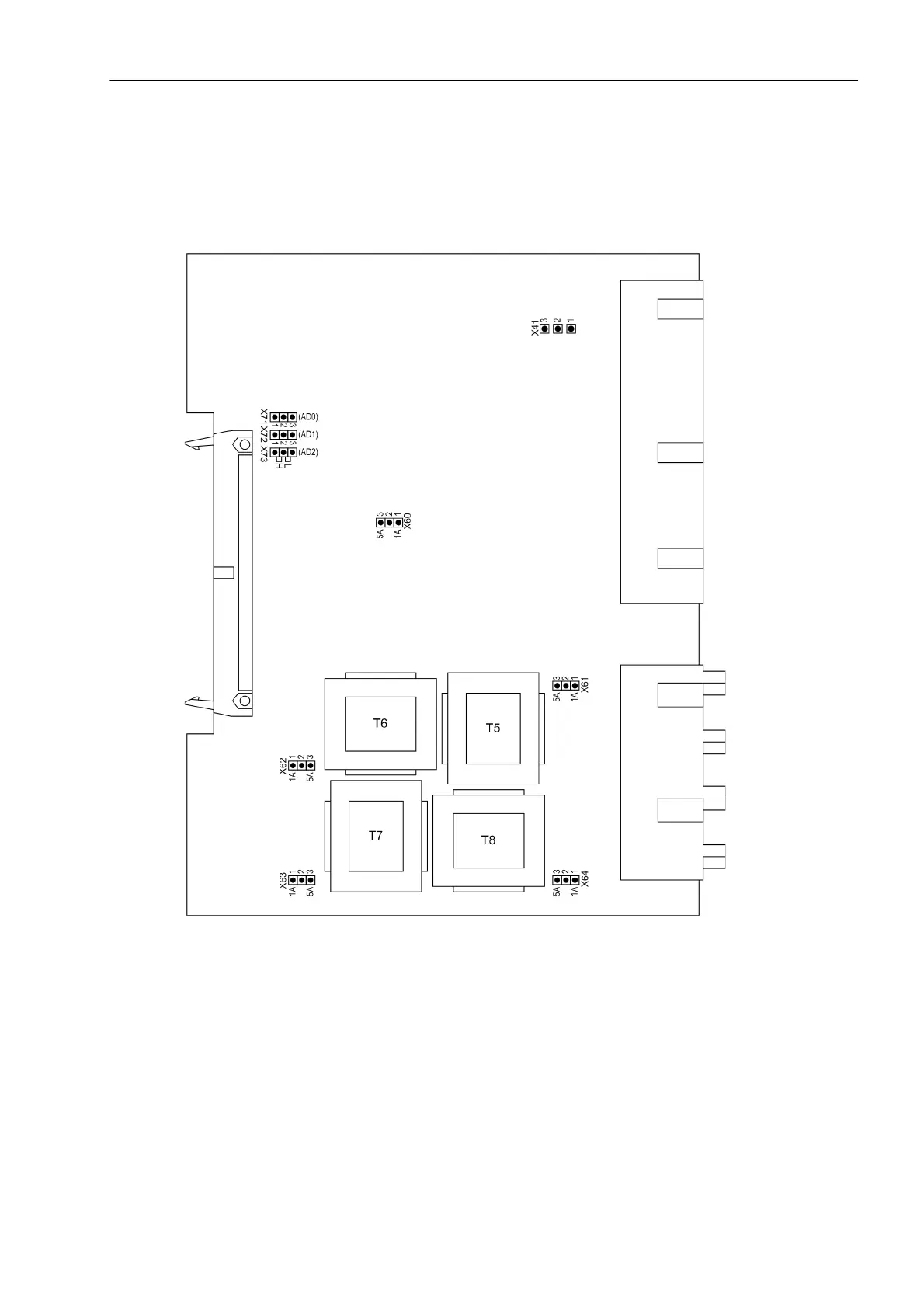

Figure 3-8 Input/output board C-I/O-2 up to release 7SD5.../EE, with representation of the jumper settings
required for checking configuration settings
The contact of the relay for the binary output BO13 can be configured as NO or NC contact (see also General
Diagrams in Appendix A, Section A.2):
with housing size
1
/
2
: No. 3 in Figure 3-3, slot 33,
with housing size
1
/
1
: No. 3 in Figure 3-4, slot 33 right.
