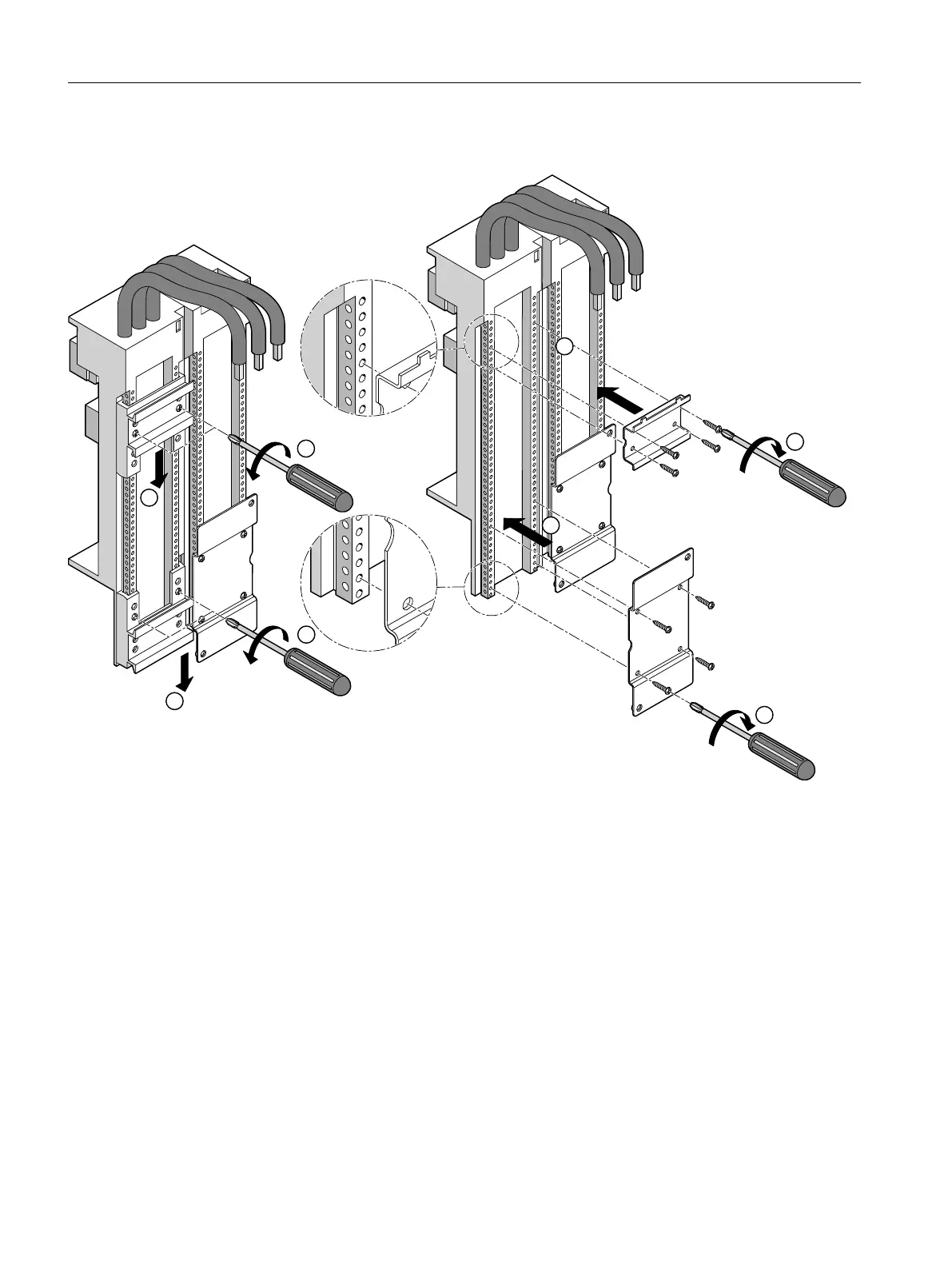

Installing the vibration and shock kit for reversing starters in size S2
①/② Use a screwdriver to release the screws of the lower plastic DIN rail, and remove the plastic DIN rail by pulling it down
o the busbar adapter.
③/④ Use a screwdriver to release the screws of the upper plastic DIN rail, and remove the plastic DIN rail by pulling it down
o the busbar adapter.
⑤/⑥ Screw the metal DIN rail tight on the busbar adapter.
Ensure the metal DIN rail is screwed into the busbar adapter in the 5th opening from the top as shown in the gure.
Tightening torque: 0.5 ... 0.8 Nm
⑦/⑧ Screw the fastening plate tight to the busbar adapter.
Ensure the fastening plate is screwed into the busbar adapter in the 2nd opening from the bottom as shown in the
diagram.
Tightening torque: 0.5 ... 0.8 Nm
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
108 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
