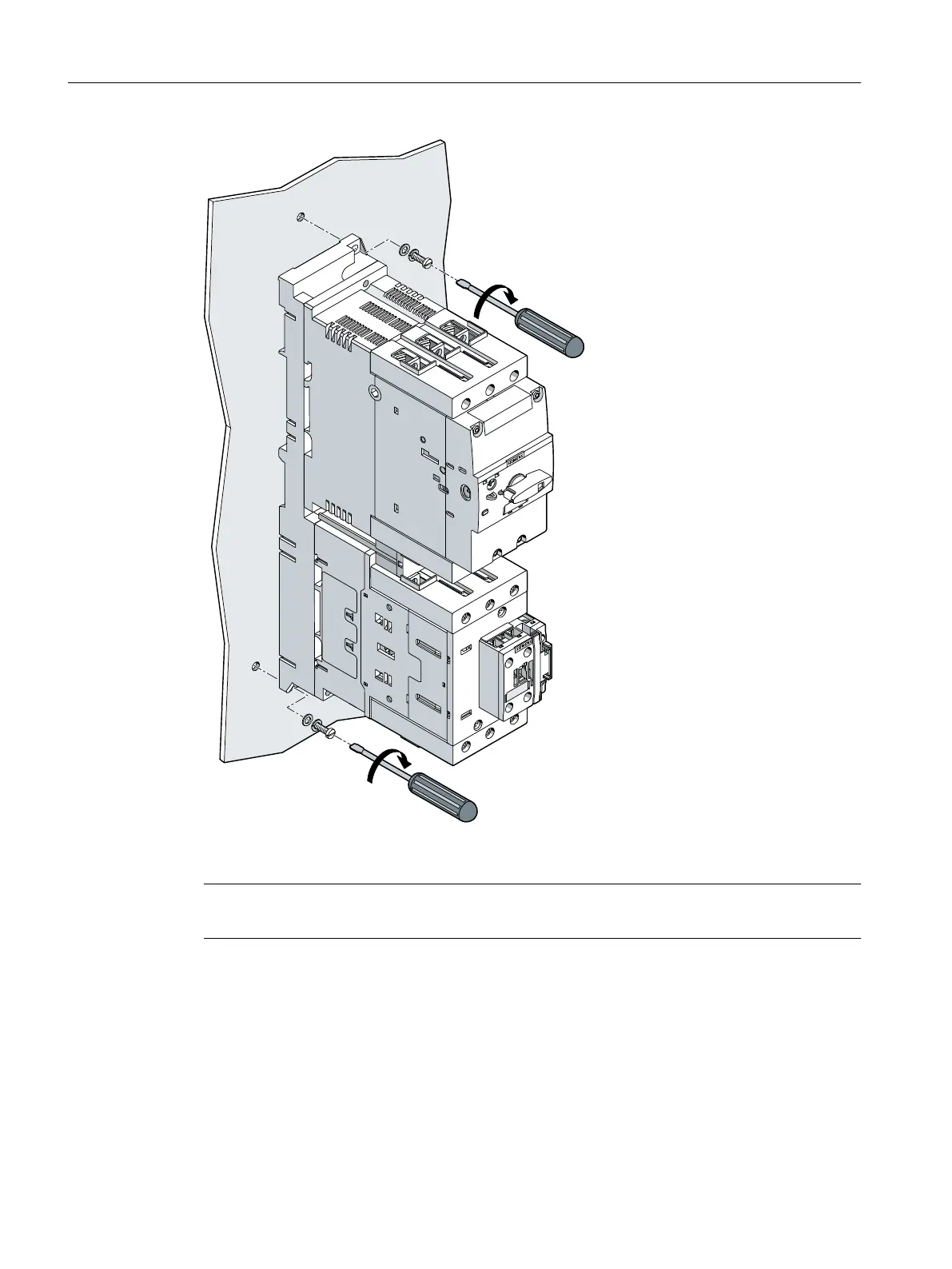

Figure 7-56 Mounting on base plate (direct-on-line starter with DIN rail adapter, screw-type connection
system, size S3)
Note
2 x M4 screws (1.5 ... 1.6 Nm) should be used to fasten the DIN rail adapter.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
116 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
