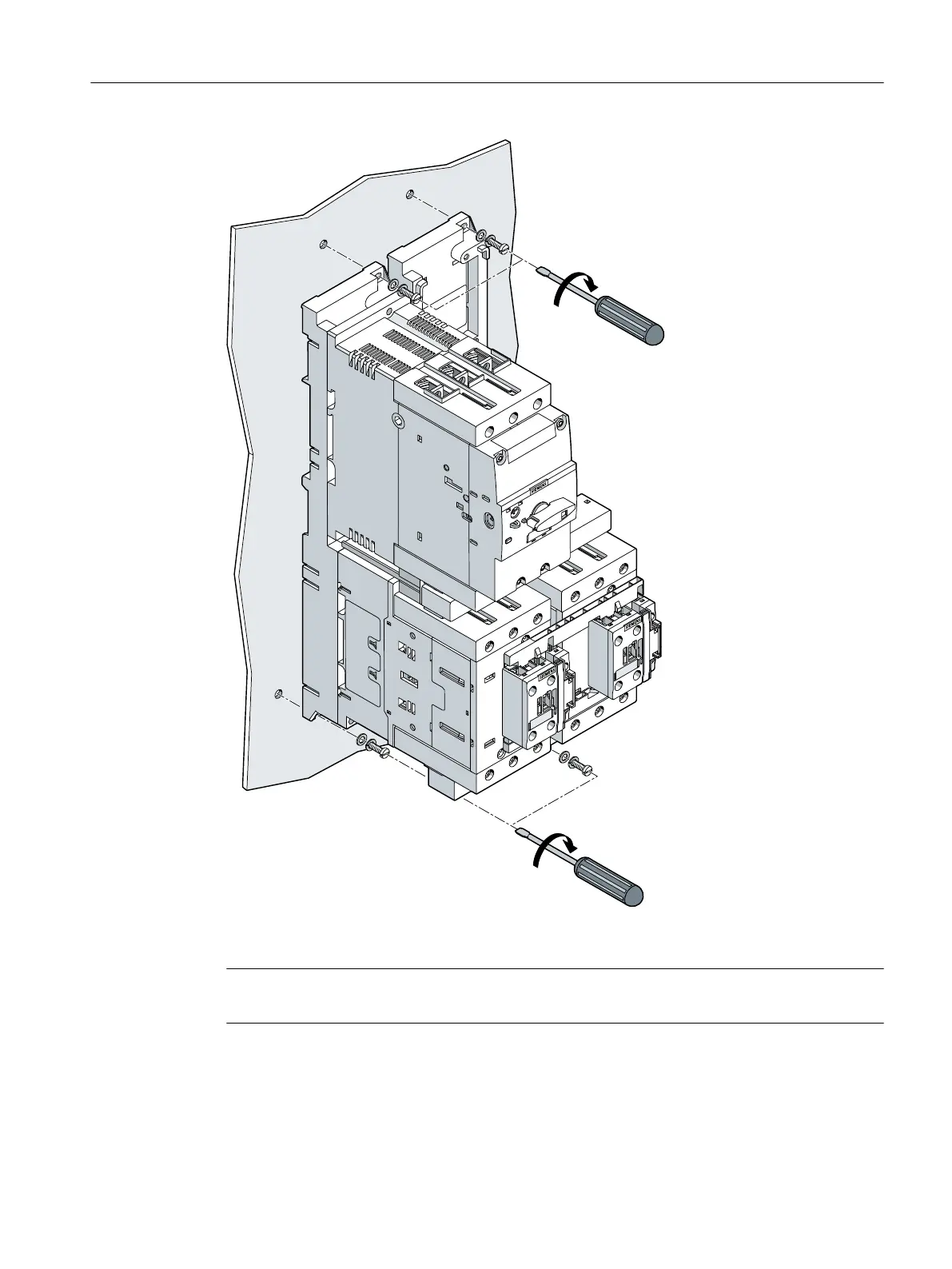

Figure 7-57 Mounting on base plate (reversing starter with DIN rail adapter, screw-type connection
system, size S3)
Note
4 x M4 screws (1.5 ... 1.6 Nm) should be used to fasten the DIN rail adapter.
Disassembling the DIN rail adapter from the base plate
To disassemble the DIN rail, unscrew the screws and remove the adapter.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 117
