Disassembling an S00 load feeder with spring-loaded connection system

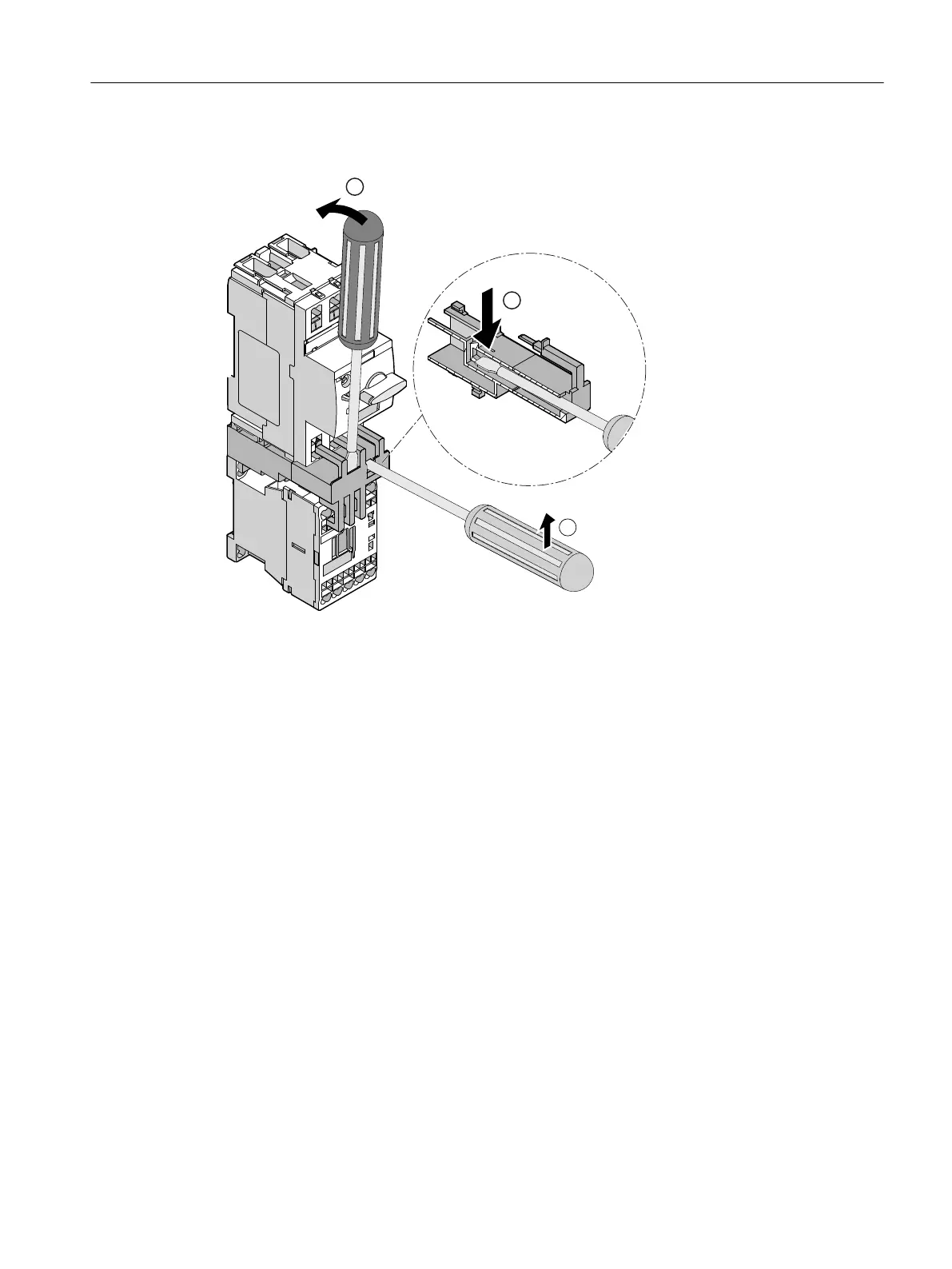

1a Slide the screwdriver into the opening on the link module as shown in the gure and press it down.
1b Position the screwdriver on the link module as shown in the gure and press it down to release the
spring-loaded terminals.
Figure 7-7 Disassembling an S00 load feeder with spring-loaded connection system
Mounting
7.2 Mounting and disassembling load feeders
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 49
