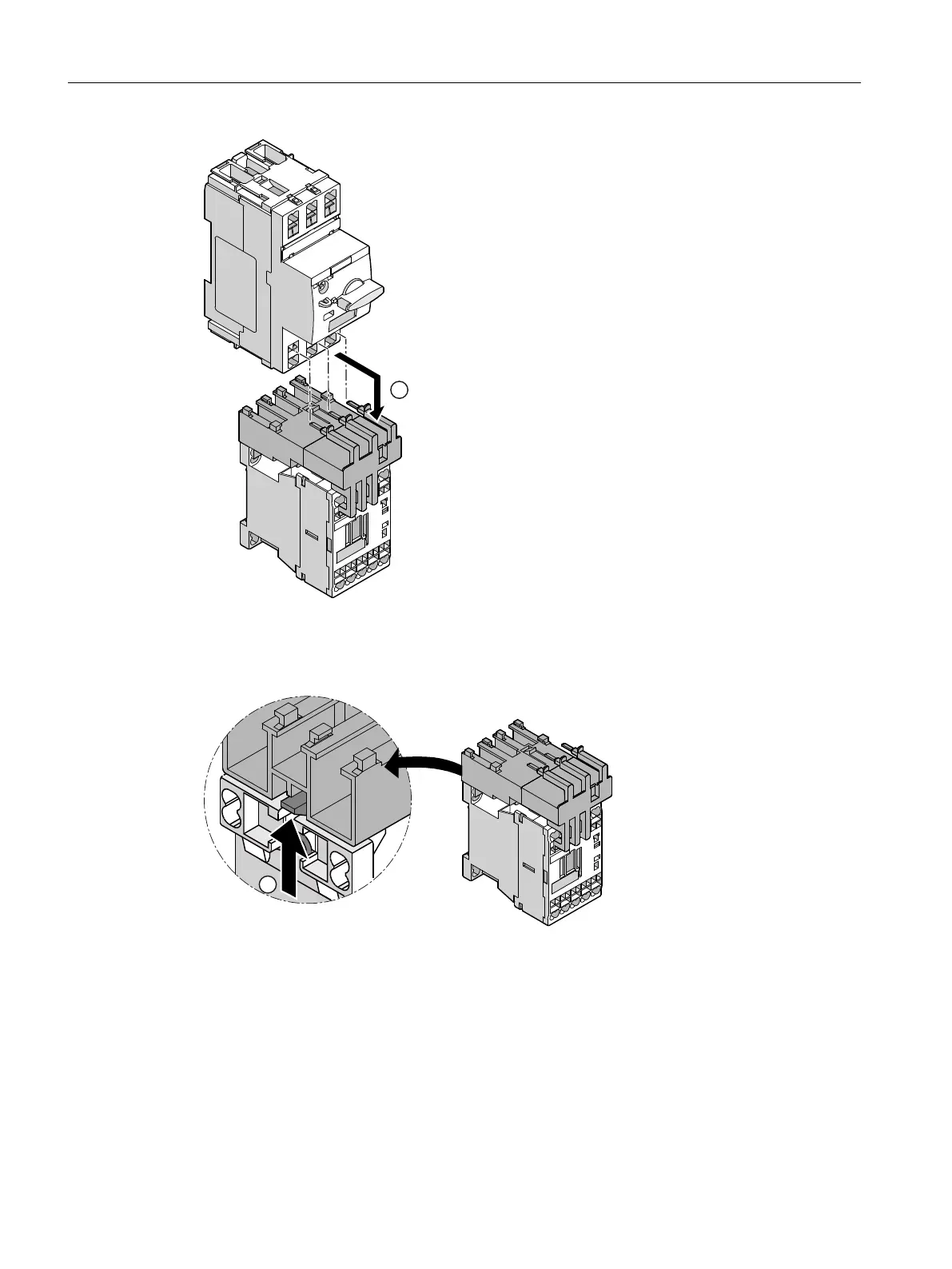

② Pull the link module and the contactor attached to it toward you to remove it.
Figure 7-8 Disassembling an S00 load feeder with spring-loaded connection system
③ Push the release slide on the rear of the link module up.
Figure 7-9 Disassembling an S00 load feeder with spring-loaded connection system
Mounting
7.2 Mounting and disassembling load feeders
SIRIUS 3RA Load Feeders
50 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
