Note
Contactor size S0 alternating current (AC)
S0 contactors with AC operation and spring-loaded connection system need a spacer (d) for DIN
rail or busbar adapter mounting.

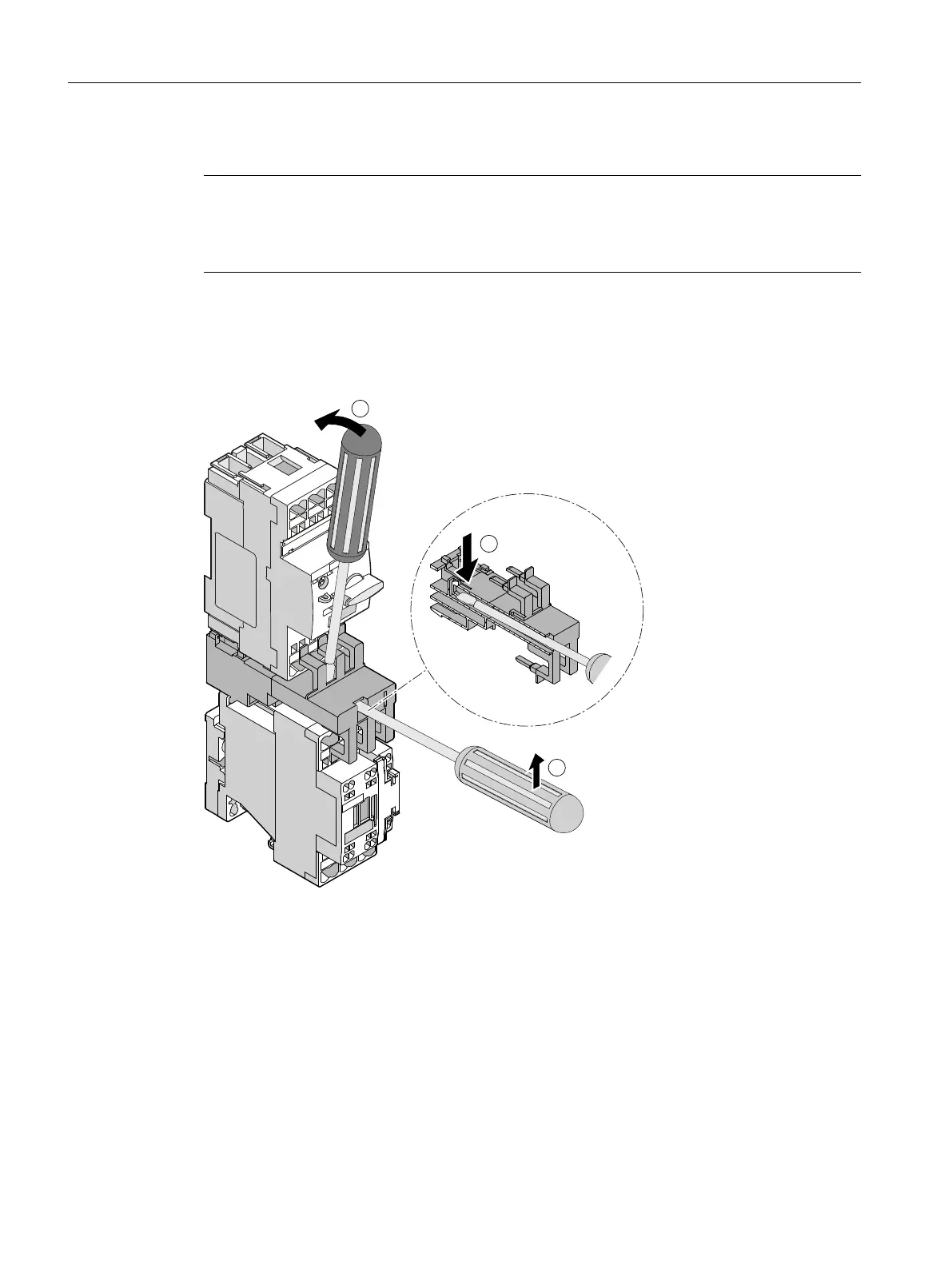

Disassembling an S0 load feeder with spring-loaded connection system
1a Slide the screwdriver into the opening on the link module as shown in the gure and press it down.
1b Position the screwdriver on the link module as shown in the gure and press it down to release the
spring-loaded terminals.
Figure 7-13 Disassembling an S0 load feeder with spring-loaded connection system
Mounting
7.2 Mounting and disassembling load feeders
SIRIUS 3RA Load Feeders
54 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
