② Insert the connectors on the link module (b) into the corresponding main conductor terminals on
the motor starter protector.
Insert the guide tabs (c) into the designated slots at the same time.
The link module will sit 󹪞ush underneath the motor starter protector on the left- and right-hand
sides.

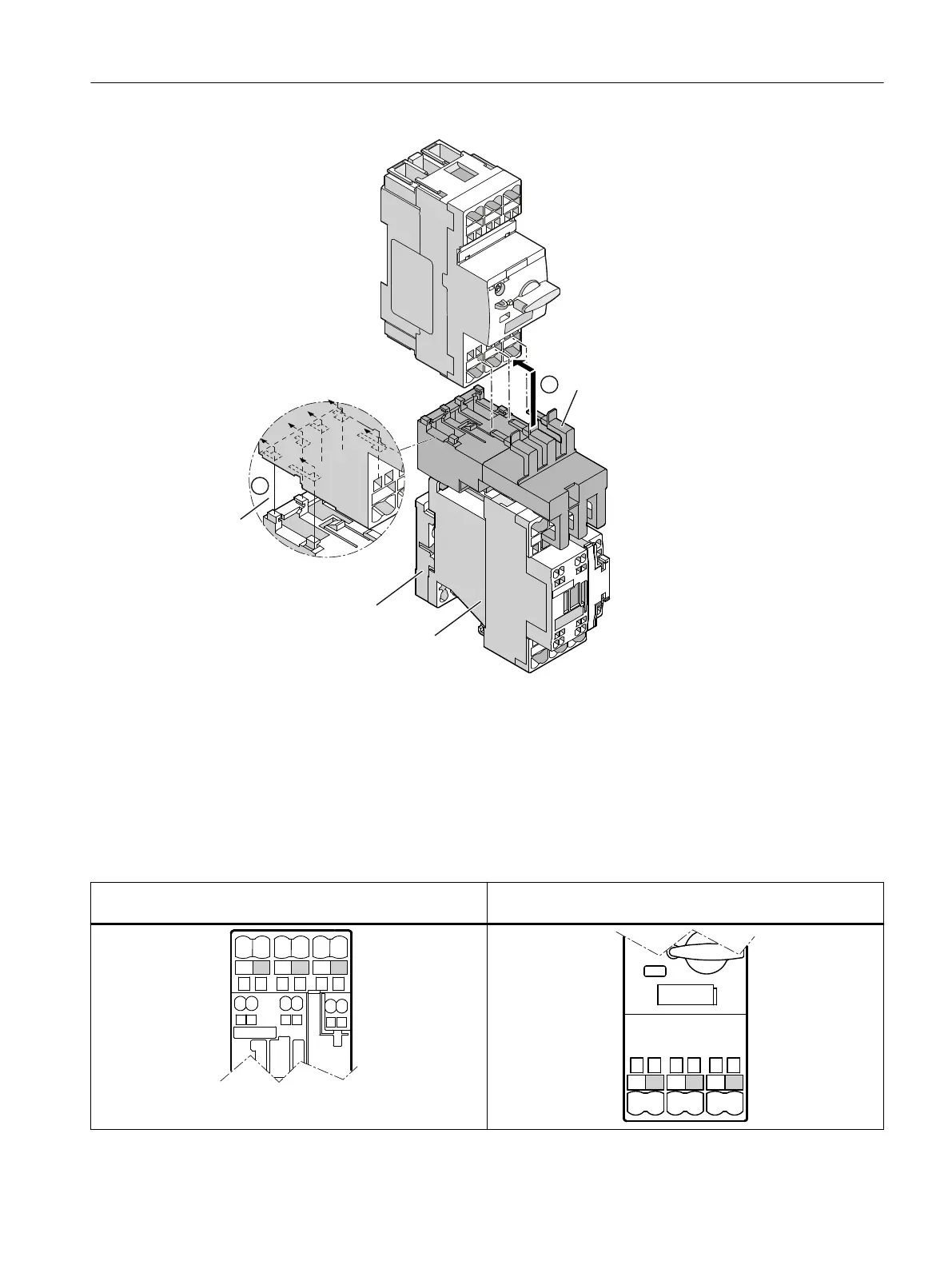

Figure 7-12 Mounting an S0 load feeder with spring-loaded connection system
Table 7-4 Main conductor terminals on contactor and motor starter protector (size S0)
Main conductor terminals on the contactor (a) (S0): Main conductor terminals on the motor starter protector
(b) (S0):
DDD
EEE
Mounting
7.2 Mounting and disassembling load feeders
