Mounting an S0 load feeder with spring-loaded connection system
① Insert the connectors (a) on the link module into the corresponding main conductor terminals (a)
on the contactor. Make sure that the guide tabs are inserted into the slots on the contactor.
Insert the guide tabs (c) on the link module into the slots on the contactor at the same time.
The link module will sit ush with the contactor on the left- and right-hand sides.

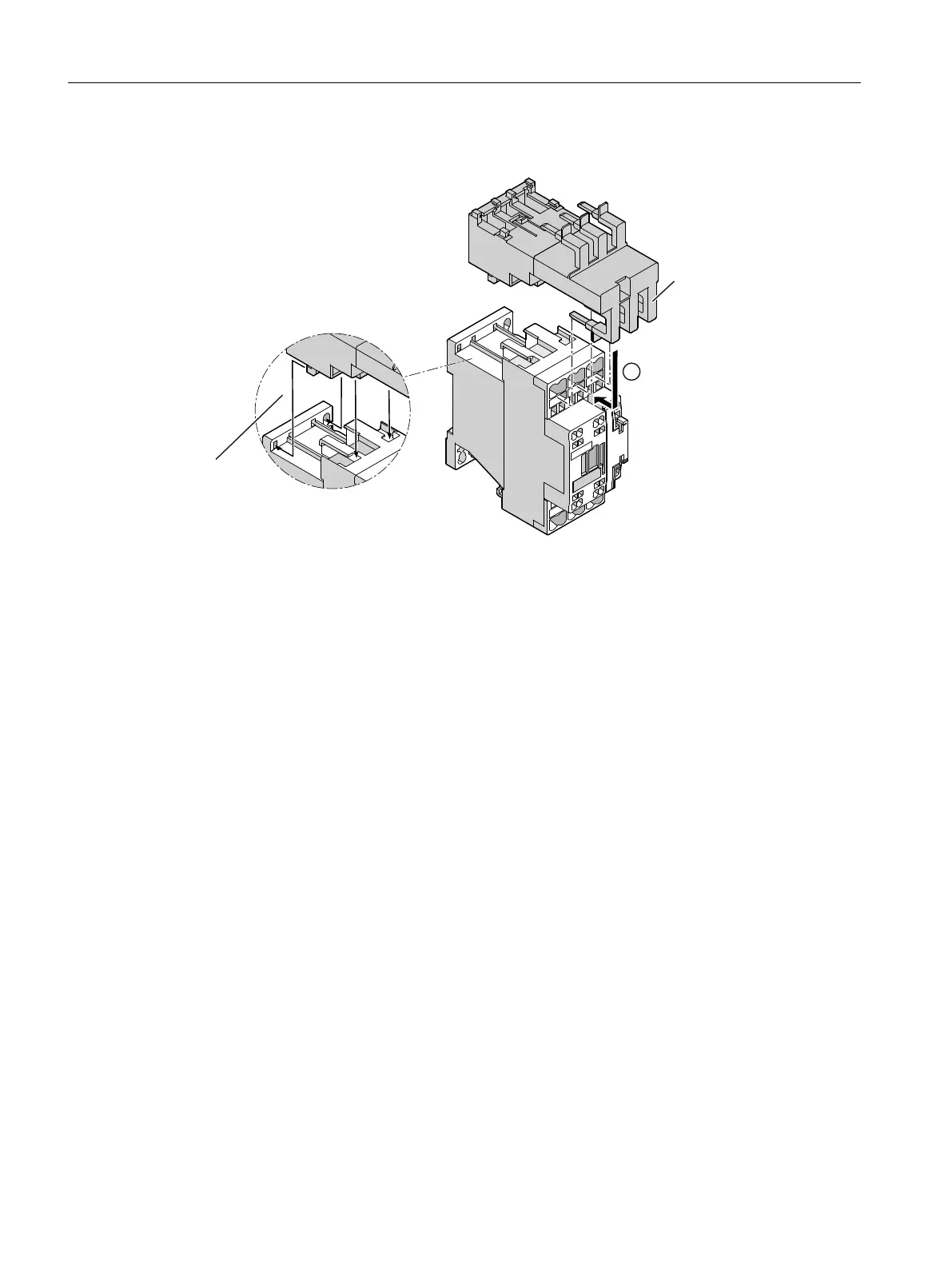

Figure 7-11 Mounting an S0 load feeder with spring-loaded connection system
Mounting
7.2 Mounting and disassembling load feeders
SIRIUS 3RA Load Feeders
52 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
