Mounting the direct-on-line starter on the DIN rail adapter: Size S3

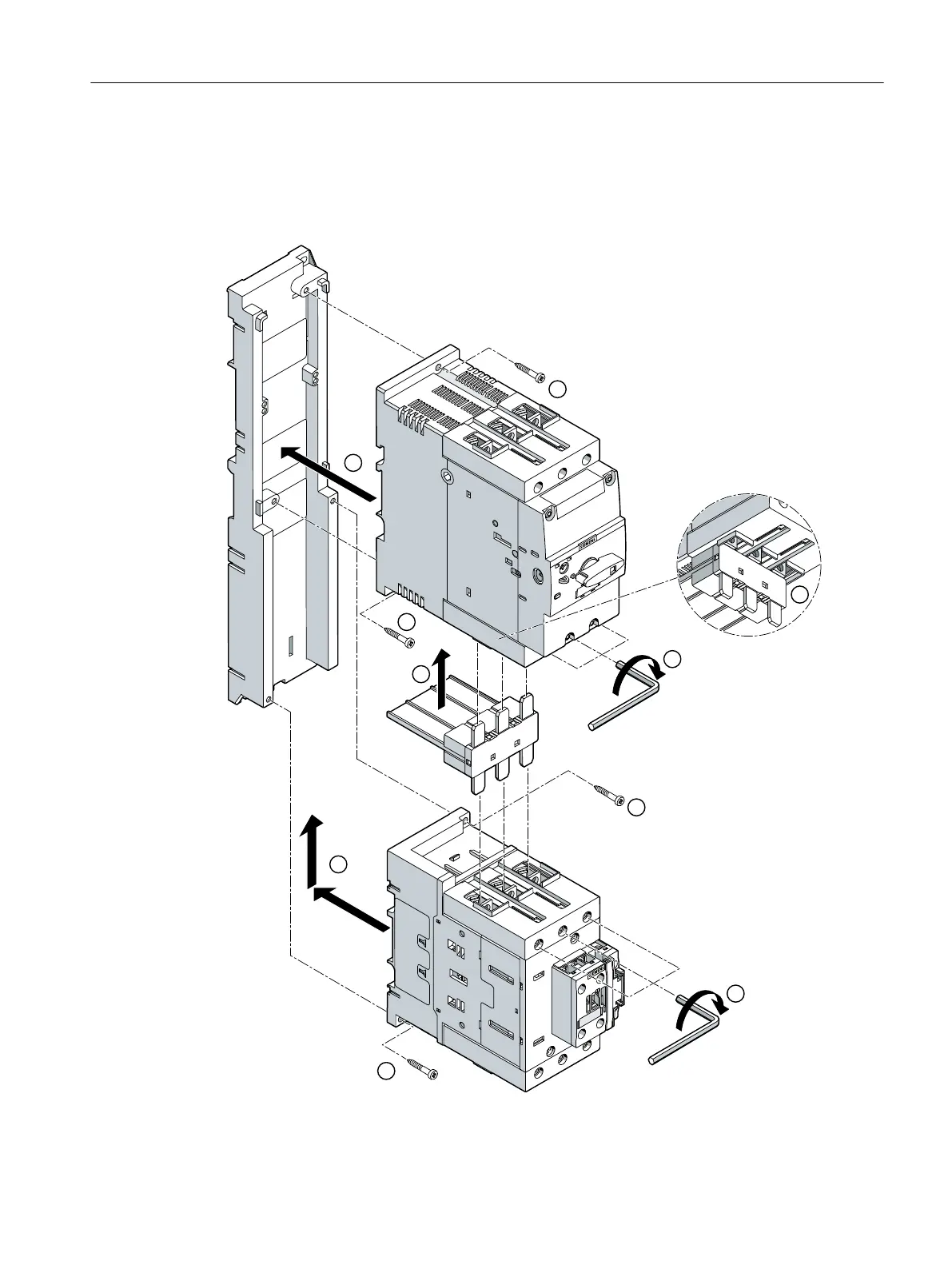

The gure below illustrates how the size S3 direct-on-line starter with screw-type connection
system is mounted on a DIN rail adapter. The devices are snapped onto the DIN rail adapter and
screwed onto the adapter.
① Place the motor starter protector on the DIN rail adapter.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 81
