4
4
①/
②

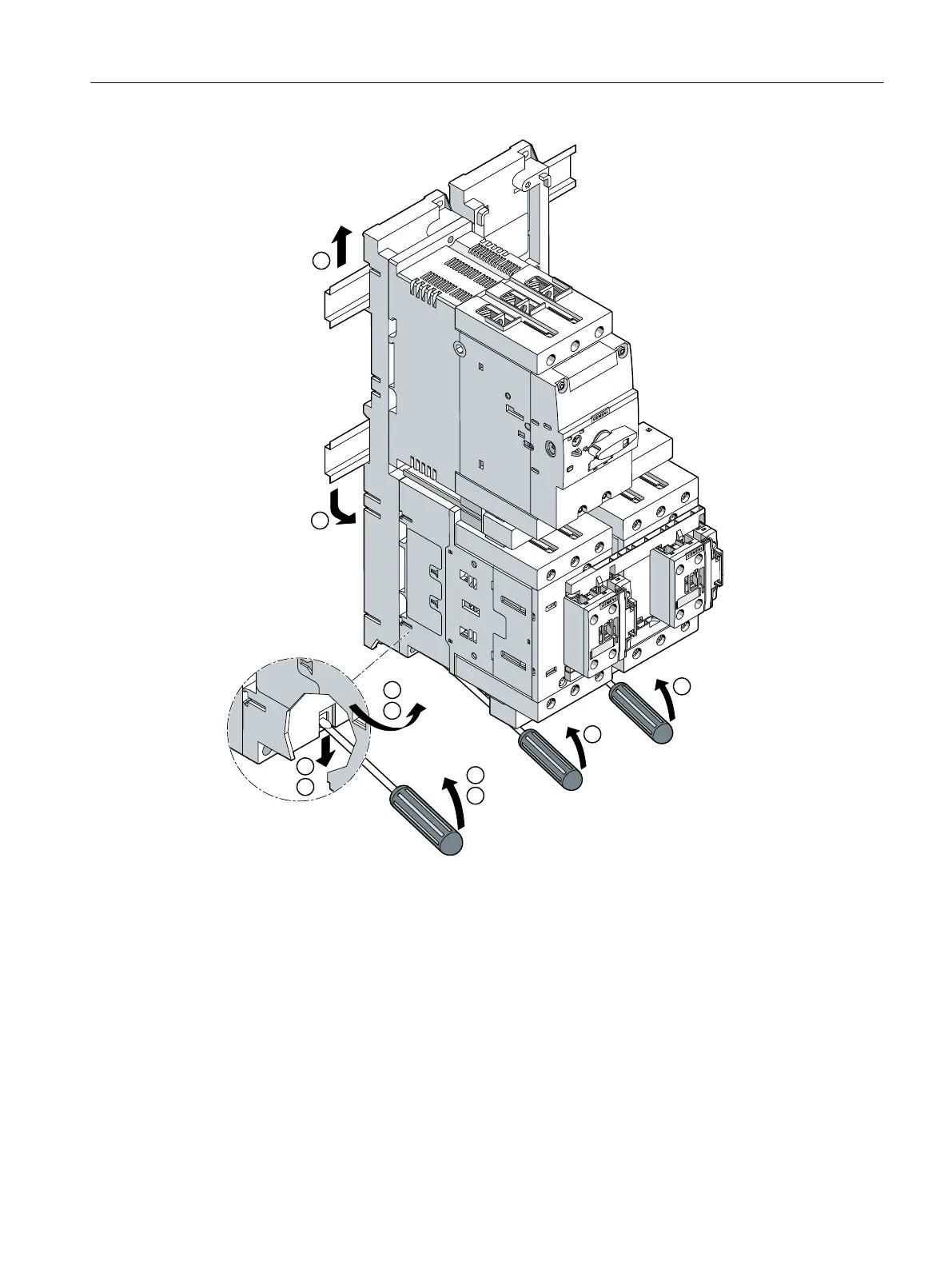

Press the locking devices down with a screwdriver. Then push the DIN rail adapter with mounted
feeder forwards against the pressure of the mounting spring.
③ Pull the DIN rail adapter with mounted feeder forwards with a swivel action.
④ Press the DIN rail adapter with mounted feeder upwards and remove the DIN rail adapter with
mounted feeder from the DIN rail.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 87
