Disassembling the DIN rail adapter from the DIN rail

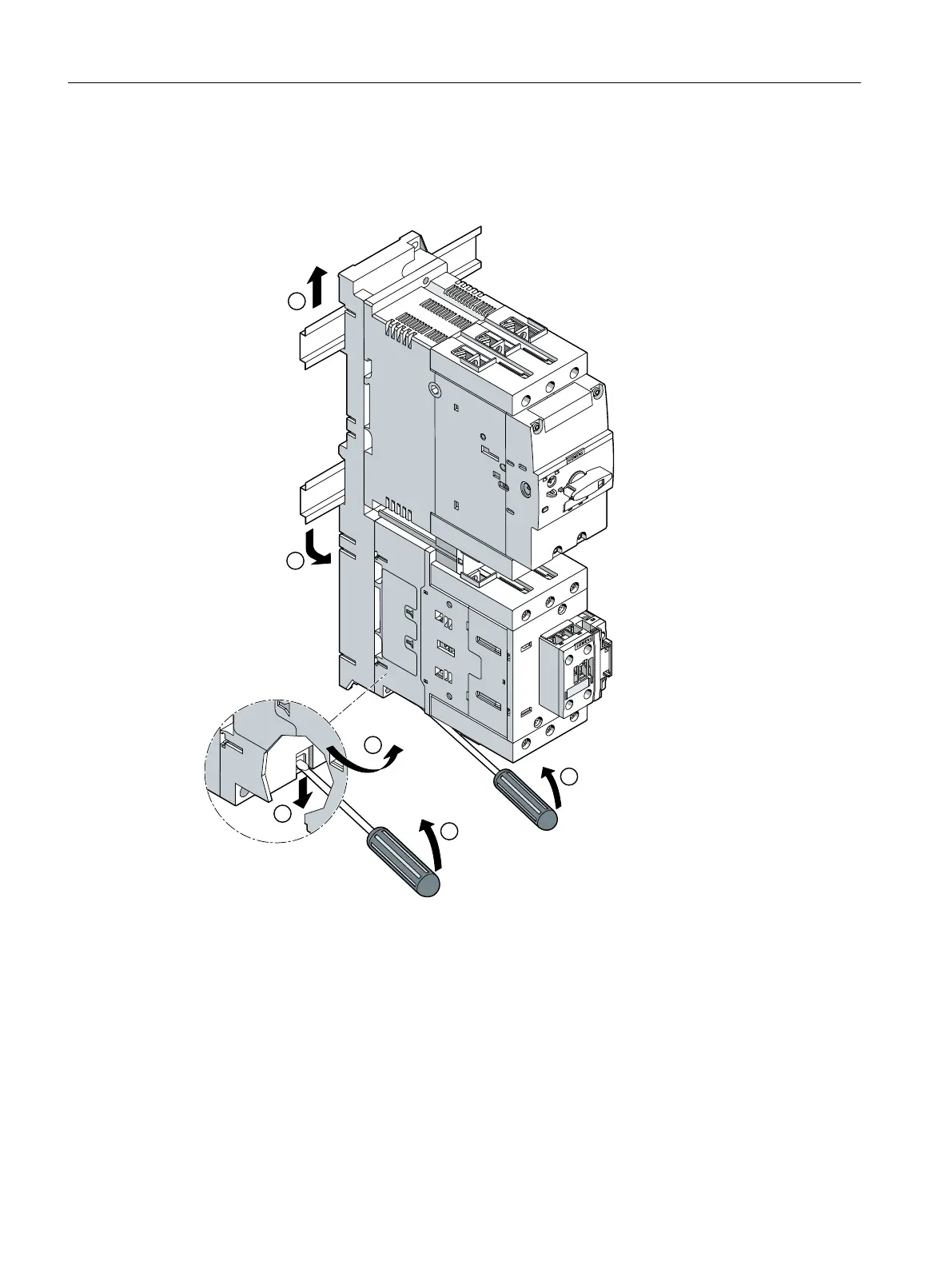

The procedure for disassembling the DIN rail adapter with mounted size S3 direct-on-line starter
is shown in the gure below. You require a screwdriver for disassembling.
① Press the locking device down with a screwdriver. Then push the DIN rail adapter with mounted
feeder forwards against the pressure of the mounting spring.
② Pull the DIN rail adapter with mounted feeder forwards with a swivel action.
③ Press the DIN rail adapter with mounted feeder upwards and remove the DIN rail adapter with
mounted feeder from the DIN rail.
The procedure for disassembling the DIN rail adapter with mounted reversing starter of size S3
is shown in the gure below. You require a screwdriver for disassembling.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
86 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
